S58 Single Turbo Kit – CenCalMotorsport®
Made in USA | Hand-Built in Southern California

Turn your G8X M2/M3/M4 into exactly what it should’ve been from the factory — a clean, efficient, big-power single turbo setup with OEM-plus drivability and race capability.

The CenCalMotorsport® S58 Single Turbo Kit is engineered, fabricated, and assembled in-house in Southern California using proven materials, proper hardware, and calculated design. No mystery fittings, no half-finished “universal” nonsense — this is a complete, thought-through solution built for serious power and reliability.

Designed for enthusiasts and shops who want:

• A tidy, serviceable engine bay

• Consistent boost control & heat management

• A layout that supports huge power goals with room to grow

---

Key Features

• Made in the USA: All core hot-side components are built in-house with strict quality control.

• Schedule 10 Stainless Manifold: 1.25" runners, T4 flange, designed for strength, flow, and abuse.

• Clean, serviceable layout: Smart routing, 2-piece charge pipe, CNC adapters, and proper block-offs.

• Thermal management built-in: Turbo blanket, coolant relocation, and correct feed/drain geometry to keep temps and oil control in check.

• Complete plumbing solution: Includes feed, drain, vacuum, fittings, gaskets & hardware to eliminate sourcing headaches.

This isn’t a pieced-together kit. It’s a CenCal-built system meant to bolt on, go to work, and go fast!

---

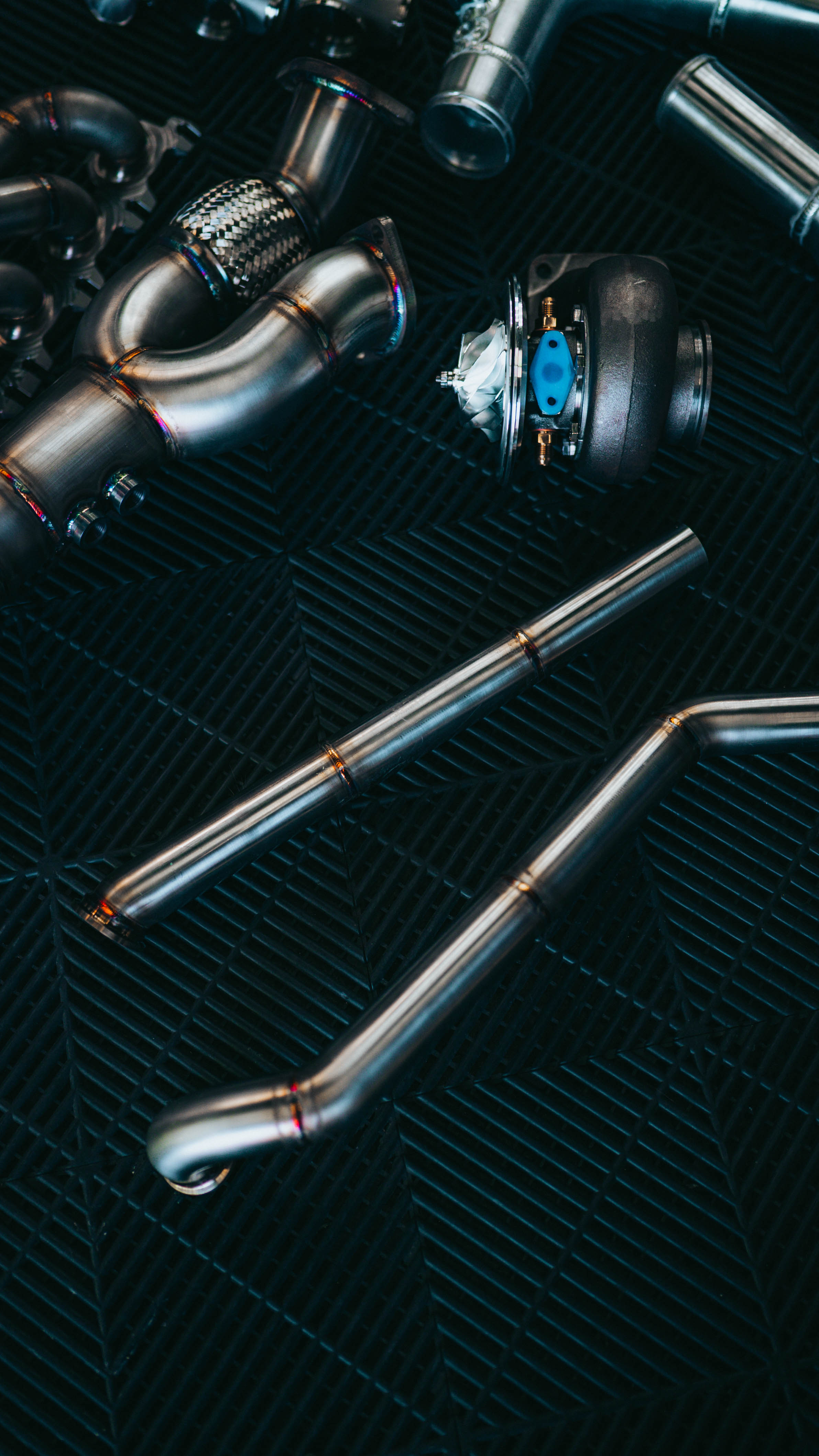

What’s Included – Base Kit

Everything you need on the hot side & supporting hardware to convert from twin to single:

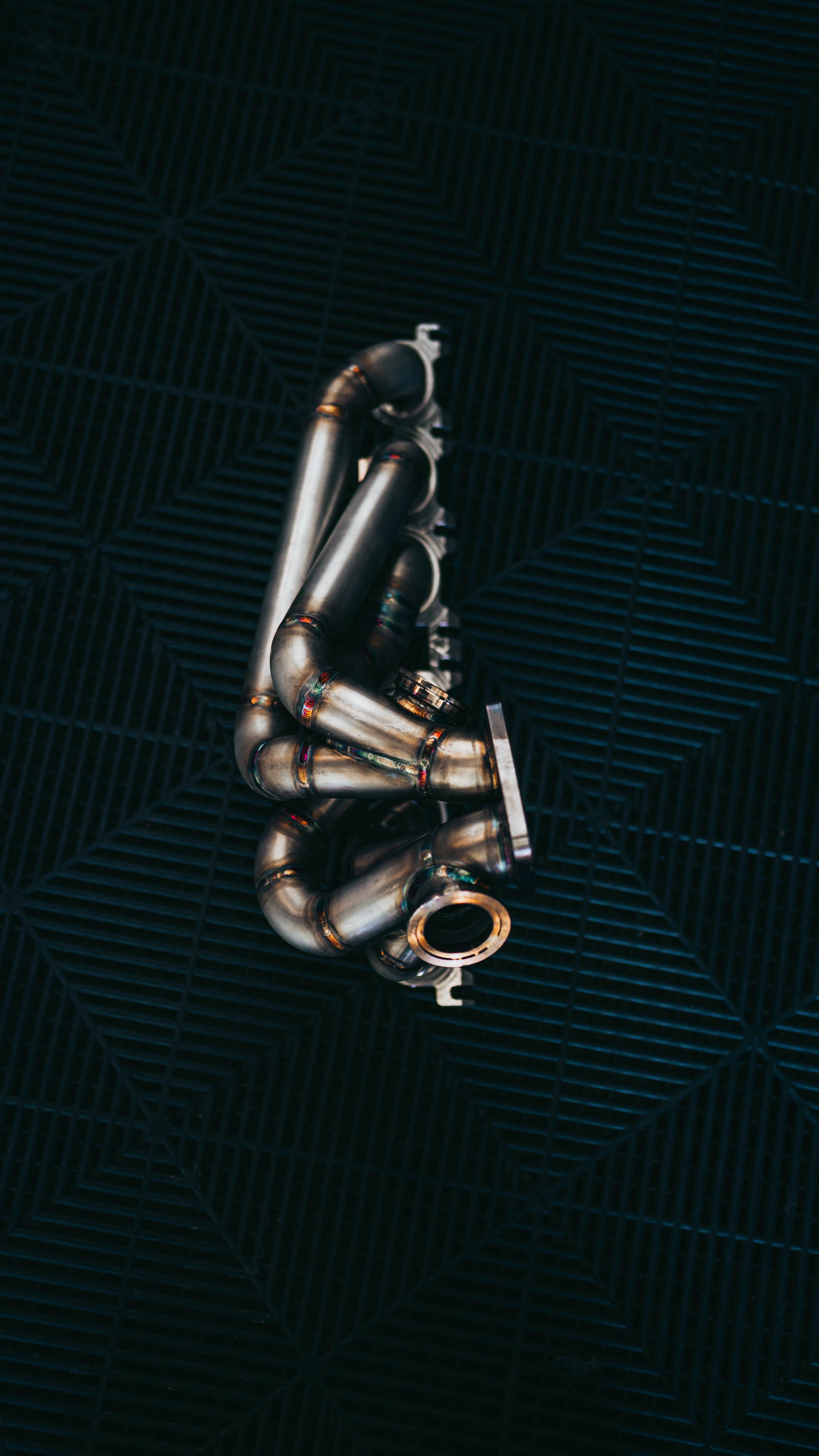

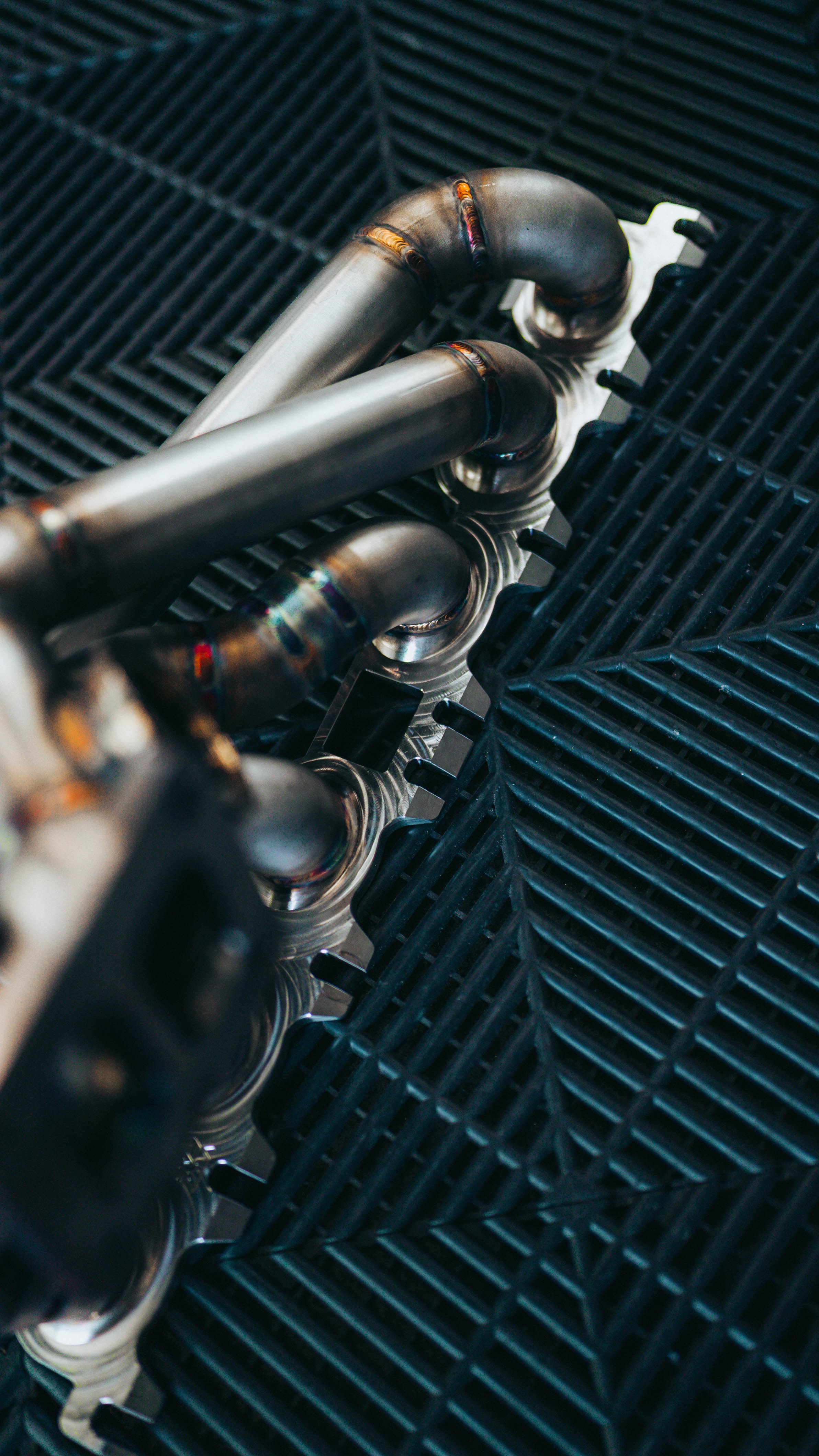

• Stainless tubular T4 single-turbo manifold (Schedule 10, 1.25" runners)

• (2) Symmetrical dump tubes

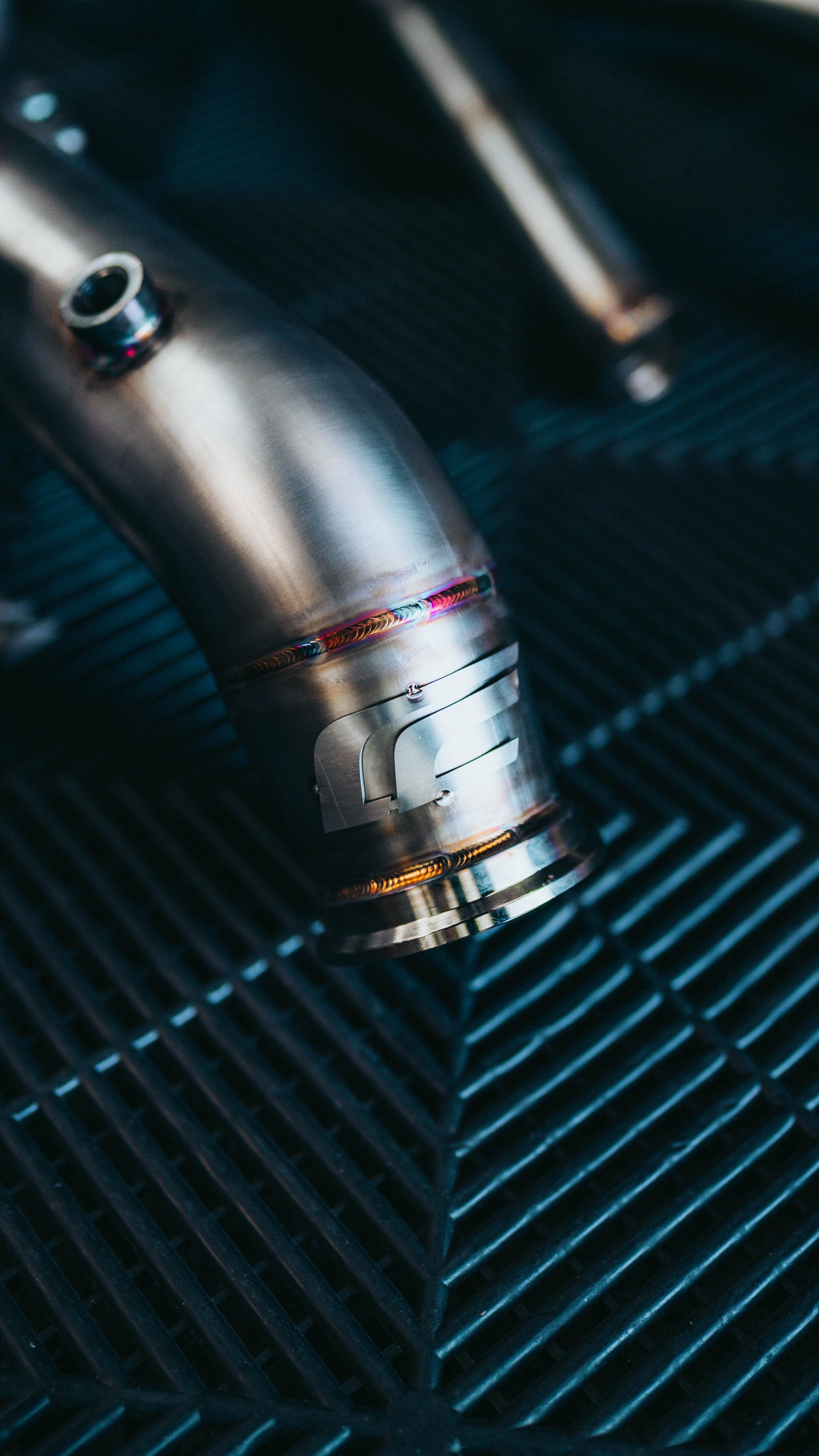

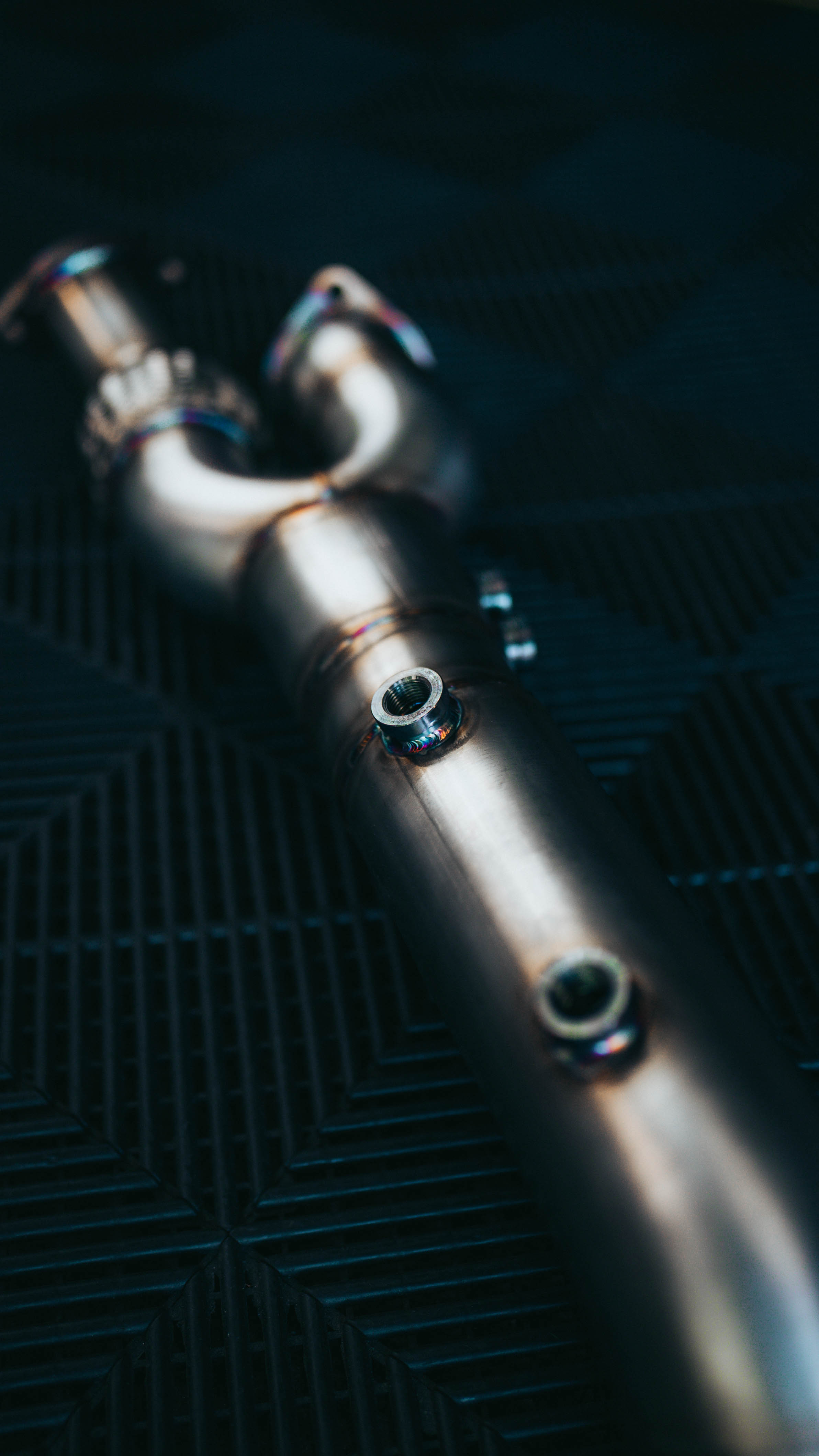

• 3.5" stainless downpipe

• 2-piece charge pipe assembly

• CNC throttle body adapter

• (2) 2.5" silicone boots

• 90° 3" silicone boot

• (3) 1/8" NPT → 1/4" barb fittings

• (3) 1/4" barbed T fittings

• 5 ft 1/4" vacuum line

• 4AN oil drain line, 18" (90° → straight)

• 4AN line with (2) 45° ends

• Exhaust flange gaskets

• Exhaust studs & nuts

• Carbon Fiber CC turbo blanket

• Turbo guard

• Coolant tank relocation hose kit

• Aluminum hard-line oil drain tube

• CNC oil drain fitting to block (10AN)

• Turbo oil drain flange → 1/2" NPT

• 1/2" NPT → 10AN adapter fitting

• Stainless 4AN oil feed line

• 1/8" NPT → 4AN adapter fitting

• CNC oil feed fitting to block (4AN)

• CNC oil drain block-off flange

• CNC oil feed block-off flange

• CNC PCV block-off (external catch can strongly recommended)

Every fitting, every line, every block-off is chosen to make this kit as “complete in a box” as possible.

---

Add-On Options

Dial in your kit around your power goals and style.

Finishes

• Raw stainless (standard)

• High-temp Cerakote (Black, Silver, or Bronze) on hot parts & intercooler piping components.

  • Improves thermal control

  • Cleans up the bay with a premium finish

Turbocharger Options

• We make compatible with any/ every turbo. If you get a turbo from us we will make sure you have the correct downpipe connection & if you are not getting the turbo from us please put the turbo you will use in notes so we give you the correct downpipe connection.

• Choose from dropdown at checkout or select “Supplying my own turbo” and note the exact model in notes that you will use.

• Optional: Powdercoated turbo housings and T51R mod available for that signature sound and look. If you select powdercoated housing please note the color in notes and add a picture of the color you want in file upload.

Wastegates

• Pair of Turbosmart HyperGate GEN V 45mm external wastegates available as an add-on

• Or select “Supplying my own gates” if you already have trusted gates.

Blow-Off Valve

• Turbosmart GenV RacePort available as an add-on

• Or select “Supplying my own BOV”

• If you do not select gates/BOV, you must supply compatible components to match the kit configuration.


Oil Catch Can (Add-On)

• Optional CenCal oil catch can kit (+$499)

• Strongly recommended with the included PCV block-off for crankcase control on high-boost setups.

Intake Manifold Upgrade (Add-On)

• Optional cast or billet manifold with built-in port injection provisions (injectors not included).

• Replaces the failure-prone OEM plastic manifold and future-proofs your fueling solution (PI/DI capable).

---

Fitment

• BMW G80 M3 (S58)

• BMW G82 / G83 M4 (S58)

• BMW G87 M2 (S58)


---

Engineering Highlights – Why the CenCal Kit

Built In-House (SoCal):
We control the process from jig to weld — no outsourced mystery parts. Each manifold and hard line is built on dedicated fixtures to ensure repeatable fitment, alignment, and gasket sealing.

Smart Packaging & Serviceability:

• 2-piece charge pipe for easier install and removal

• CNC’d adapters and block-offs that fit correctly the first time

• Routing focused on clearing factory components and keeping access for future service

Thermal Control That Makes Sense:

• Carbon fiber turbo blanket included standard

• Proper oil drain and feed geometry to avoid oil pooling issues

• Coolant tank relocation hose kit to clean up routing and keep temps under control

Complete Hardware & Plumbing:
You’re not left guessing line sizes or running to the hardware store mid-install. Feed, drain, vacuum, gaskets, block-offs — it’s in the box.

This kit is built for the enthusiast who wants OEM-level fitment with race-ready potential.

---

Lead Time & Ordering

Due to demand and in-house production:

• Typical lead time: 10–30 days depending on options & current stock.

• Many components are kept on the shelf; some configurations are made to order.

• Actual ship time may be quicker or slightly longer depending on volume.

For time-sensitive builds or hard deadlines, email:
support@cencalmotorsport.com before ordering and we’ll confirm current ETA.

List any custom requests (turbo model, finish, special routing, etc.) in your order notes — our team will review and confirm compatibility before your kit is finalized.

---

Installation, Tuning & Use

• Professional installation is required.
  This setup interfaces with exhaust, subframe, fluids, PCV, and supporting systems.

• ECU calibration/tuning is mandatory for safe operation and to realize the kit’s potential.

• External catch can strongly recommended with our included PCV block-off.

• Designed for off-road/competition use only.
  It is the customer’s responsibility to comply with local, state, and federal regulations.
