When you start pushing the S58 past stock boost, you can feel where the factory manifold starts to hold the car back. Heat builds fast. Power tapers up top. Confidence drops when you know the plastic tanks are living on borrowed time. The CSF S58 Level Up Charge Air Cooler Manifold in Thermal Dispersion Black changes that completely. Throttle response feels sharper. The car pulls harder from the mid range to redline. Intake temps stay controlled even after back to back hits. It feels like the engine finally has the cooling system it deserved from day one.

This manifold was developed through over a year of CFD analysis, dyno validation, and real world torture testing. Independent dyno sessions at over 40 PSI showed gains from 4500 RPM to redline with improved efficiency and controlled pressure drop. Eight consecutive full throttle pulls under extreme load proved its resistance to heat soak. The core is rated to 120 PSI and built to handle boost levels far beyond what most street builds will ever see. This is not theory. It is tested and proven.

Precision Engineered Design

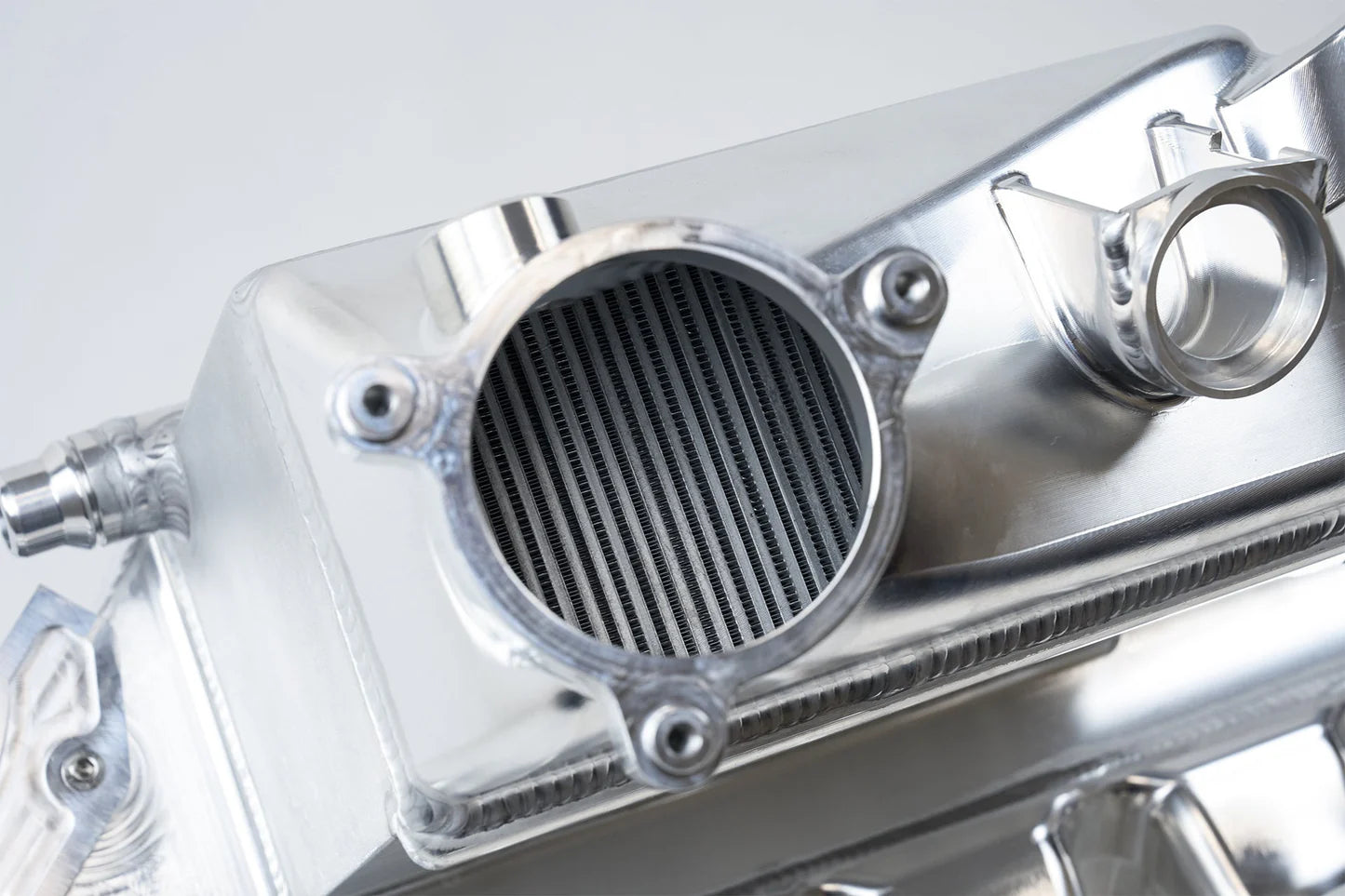

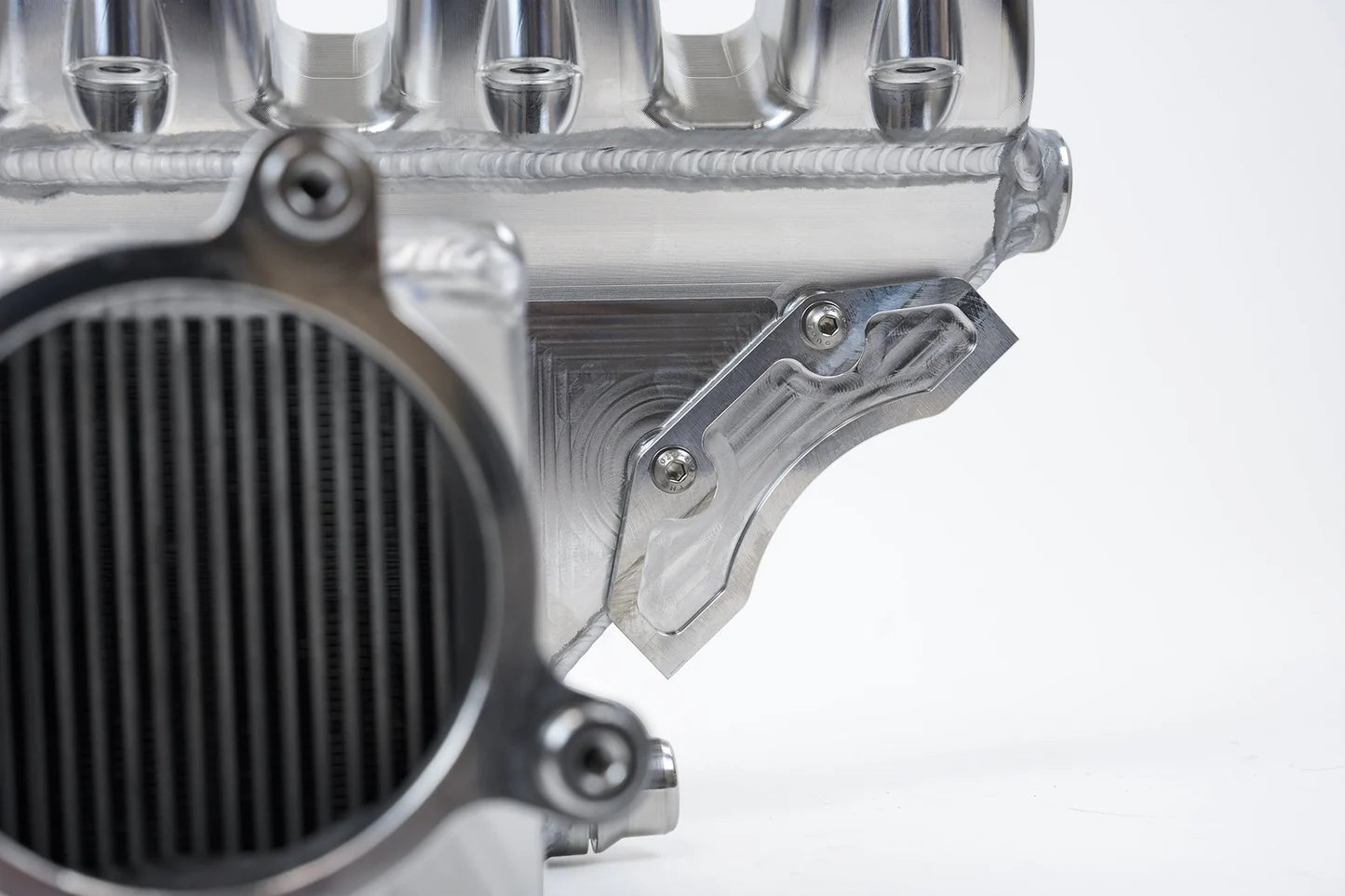

At the heart of the system is a custom PWR bar and plate air to water intercooler core with 23.6 percent more volume than OEM. Core size measures 152mm x 239mm x 110mm compared to the factory 142mm x 230mm x 99mm.

Air side fin height is 2.43mm with 28 fins per inch. Water side fin height is 2.00mm with 26 fins per inch using a lance off turbulator design for maximum surface contact. Both air and water side fins measure just 0.08mm thick. Cladding sheets are 0.3mm thick and require extremely precise TIG welding.

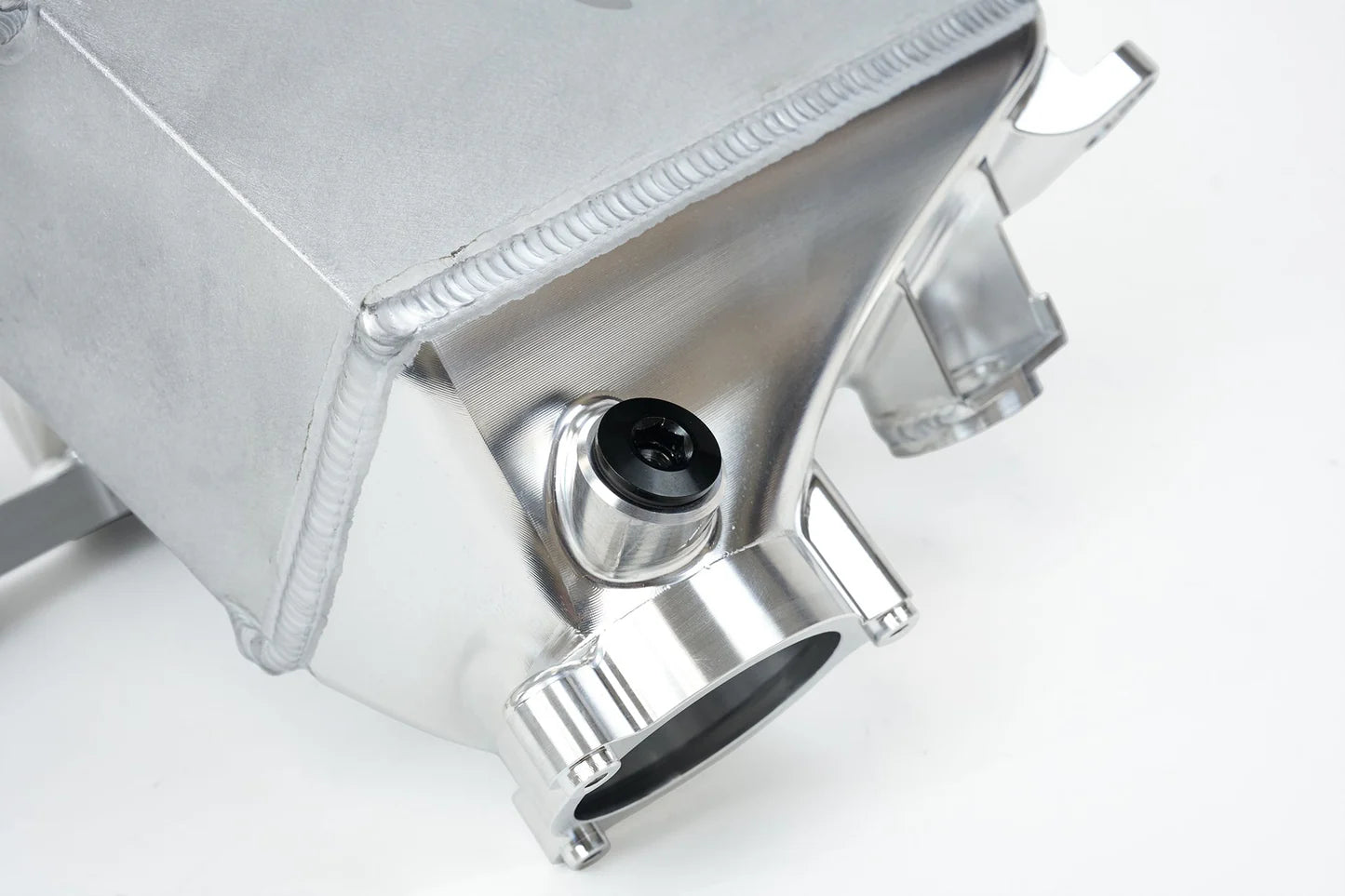

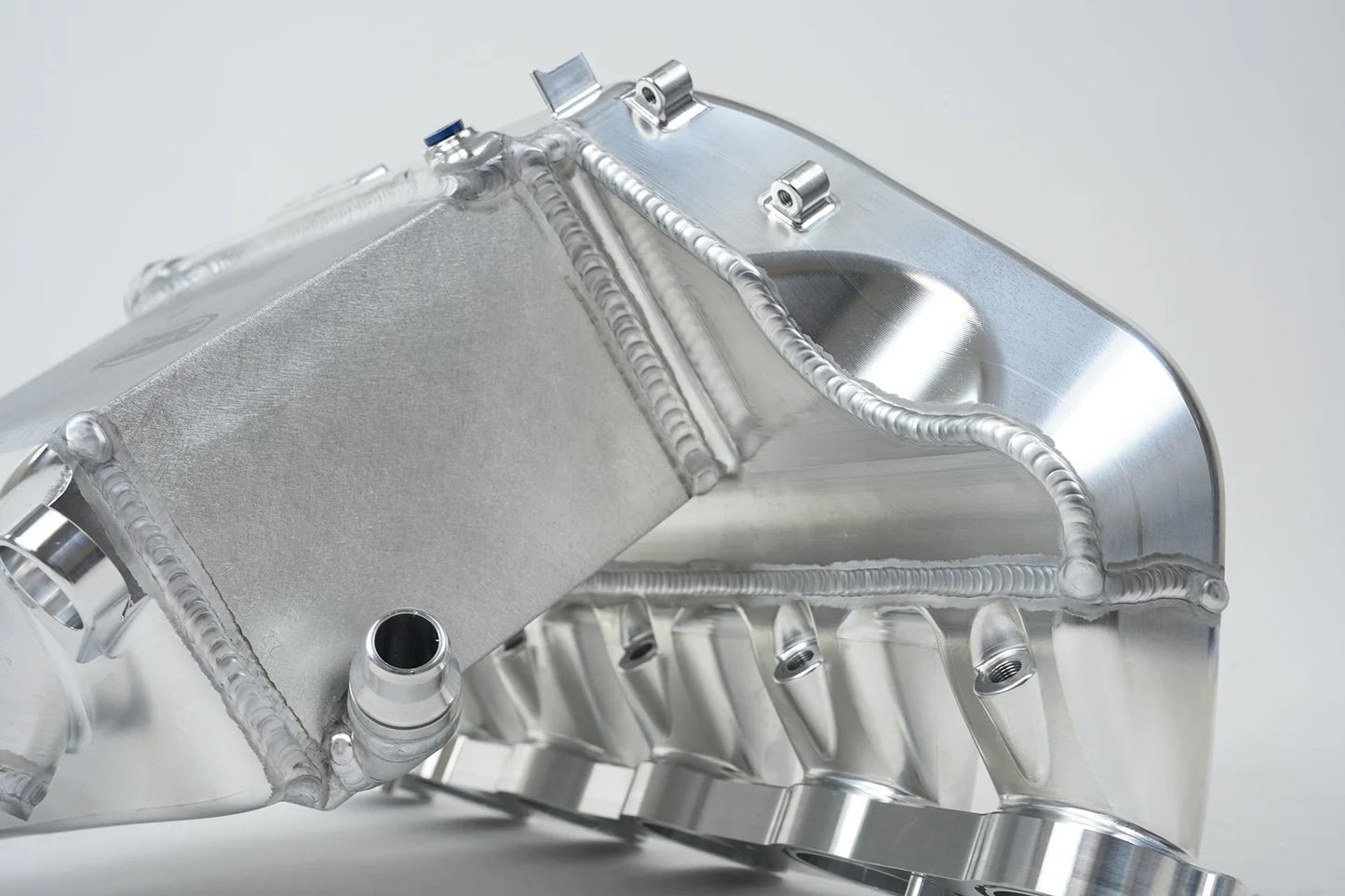

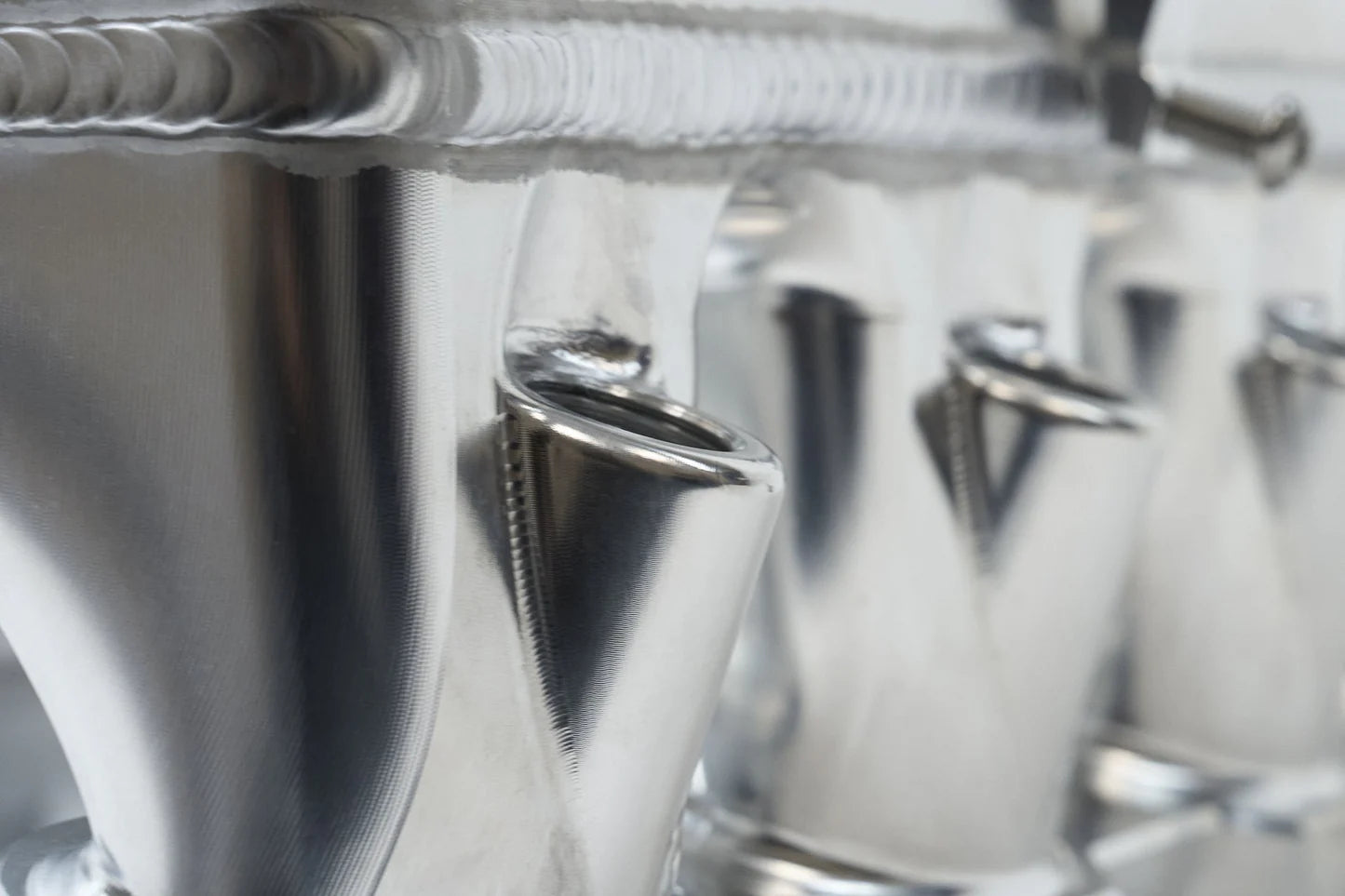

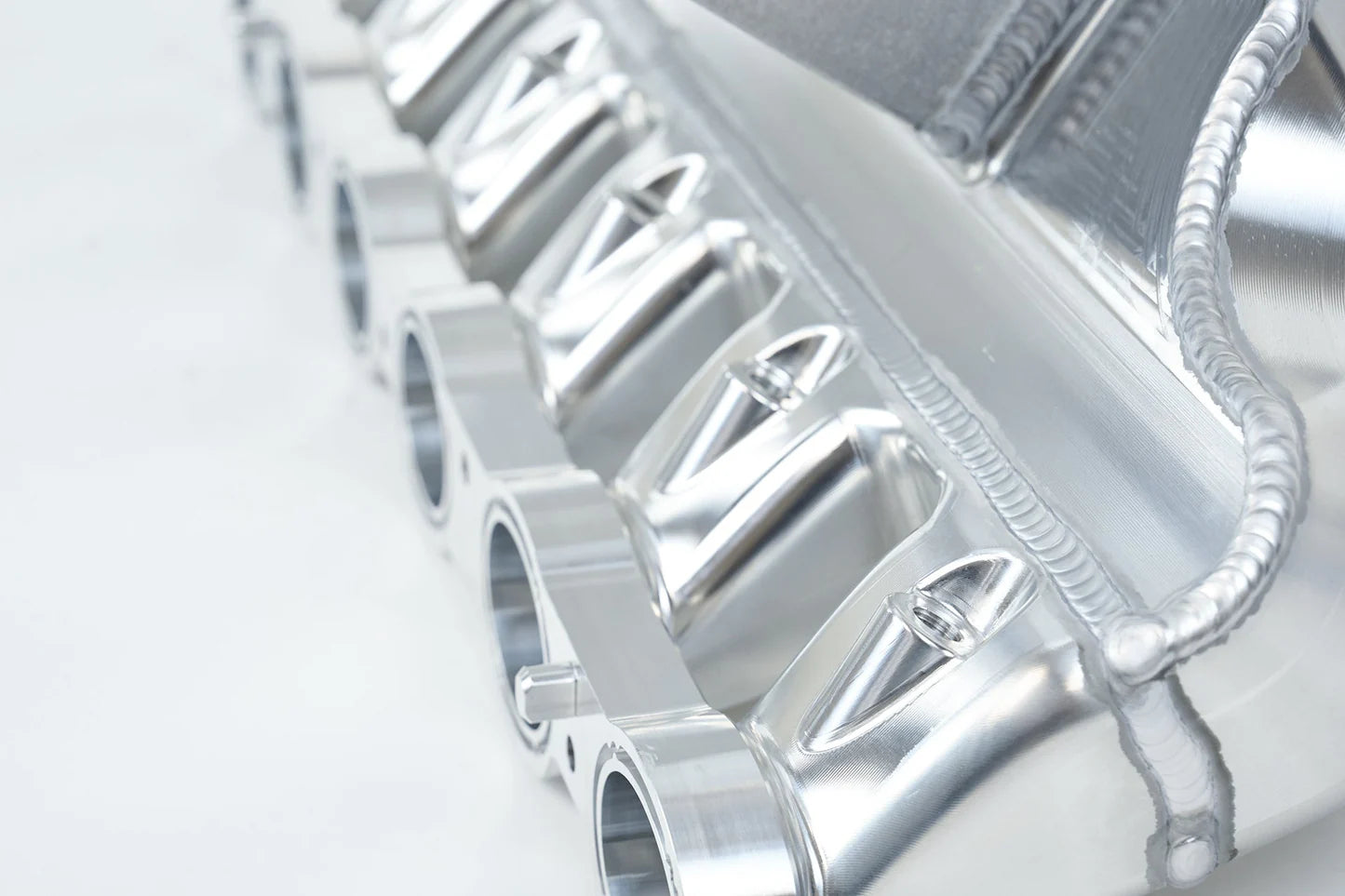

The manifold is CNC machined from billet aluminum and fully TIG welded into a one piece construction. No gasketed plenum joints. No crimped plastic tanks. The welded design increases plenum volume and eliminates common OEM failure points.

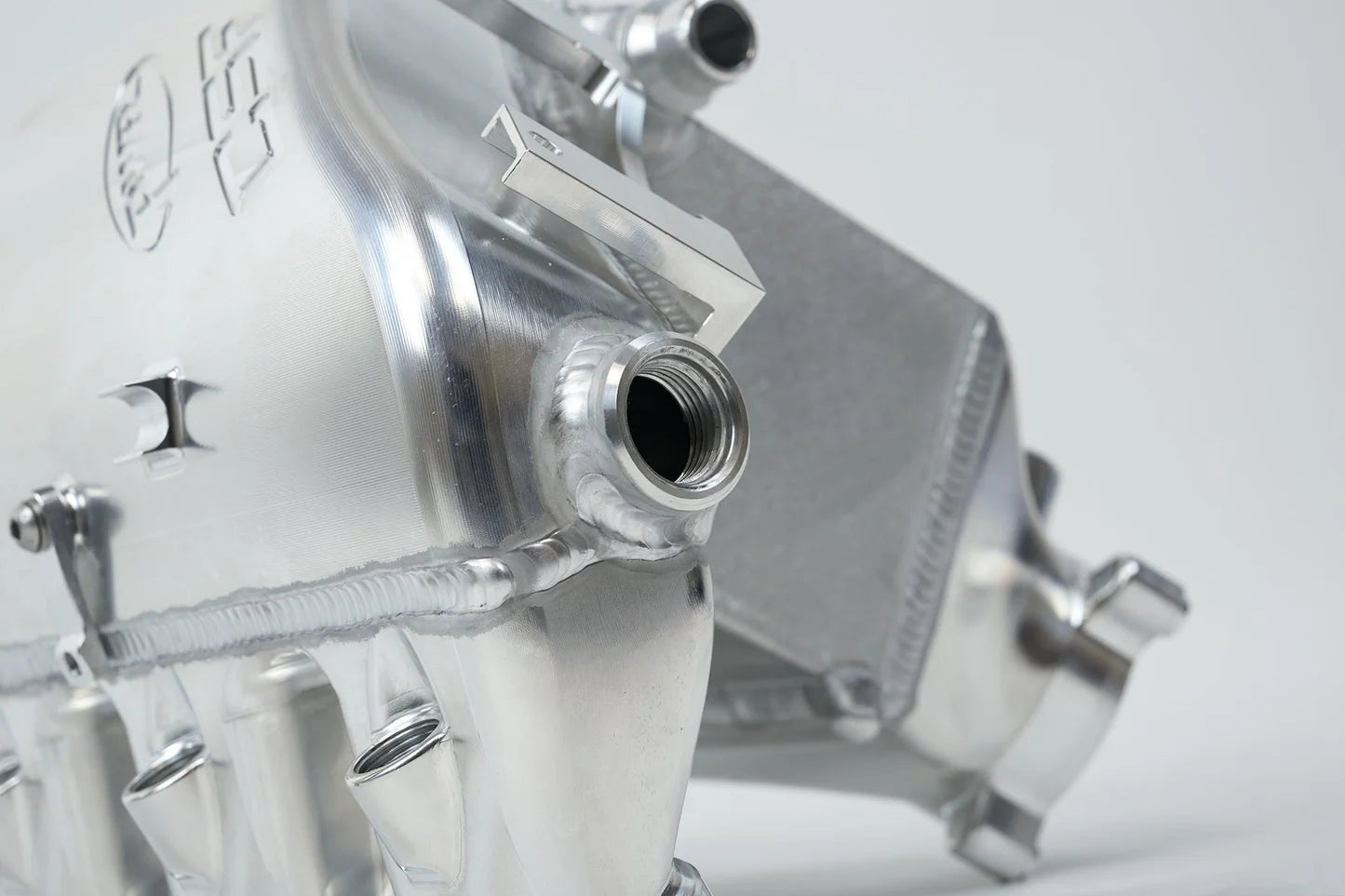

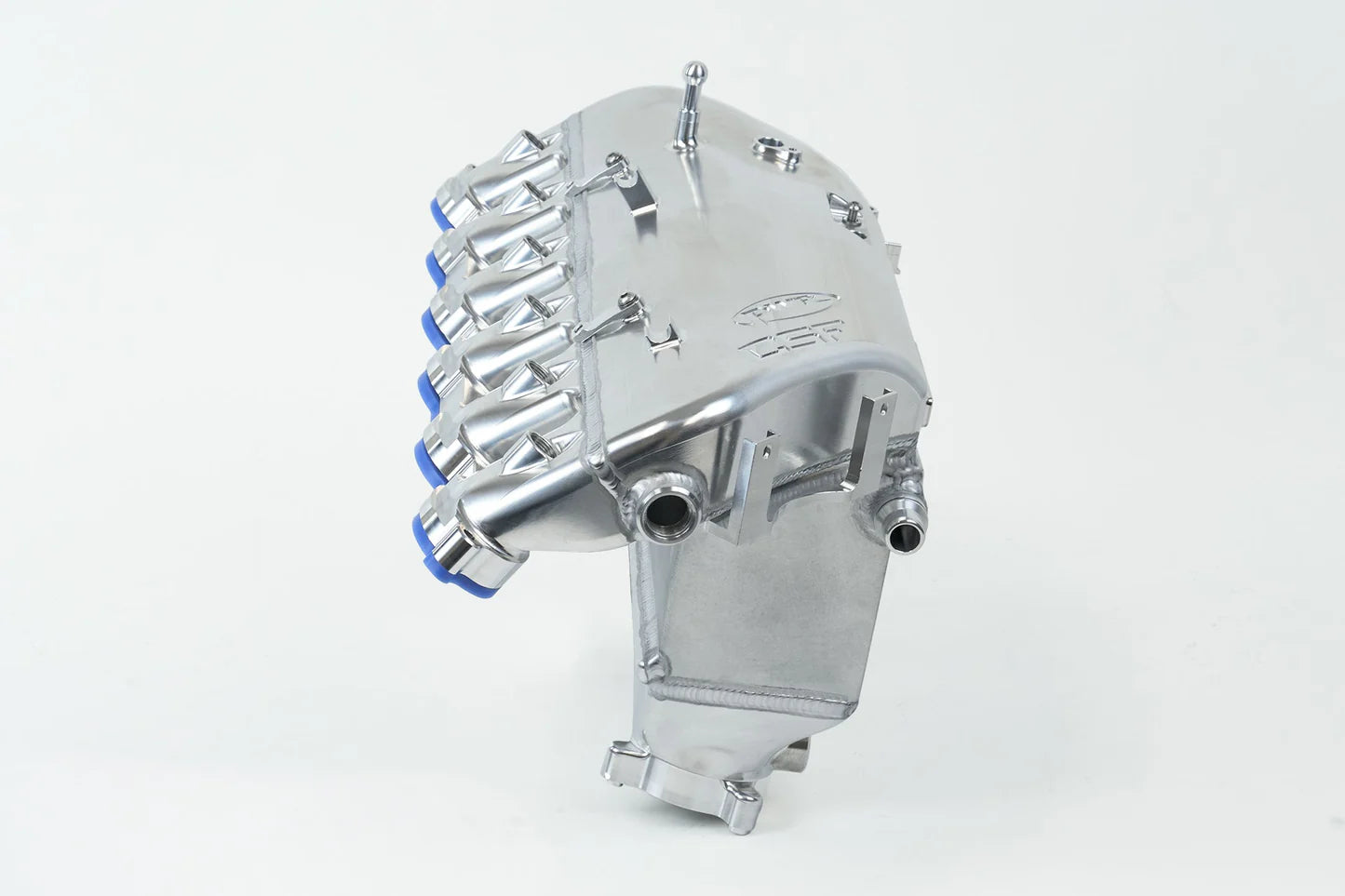

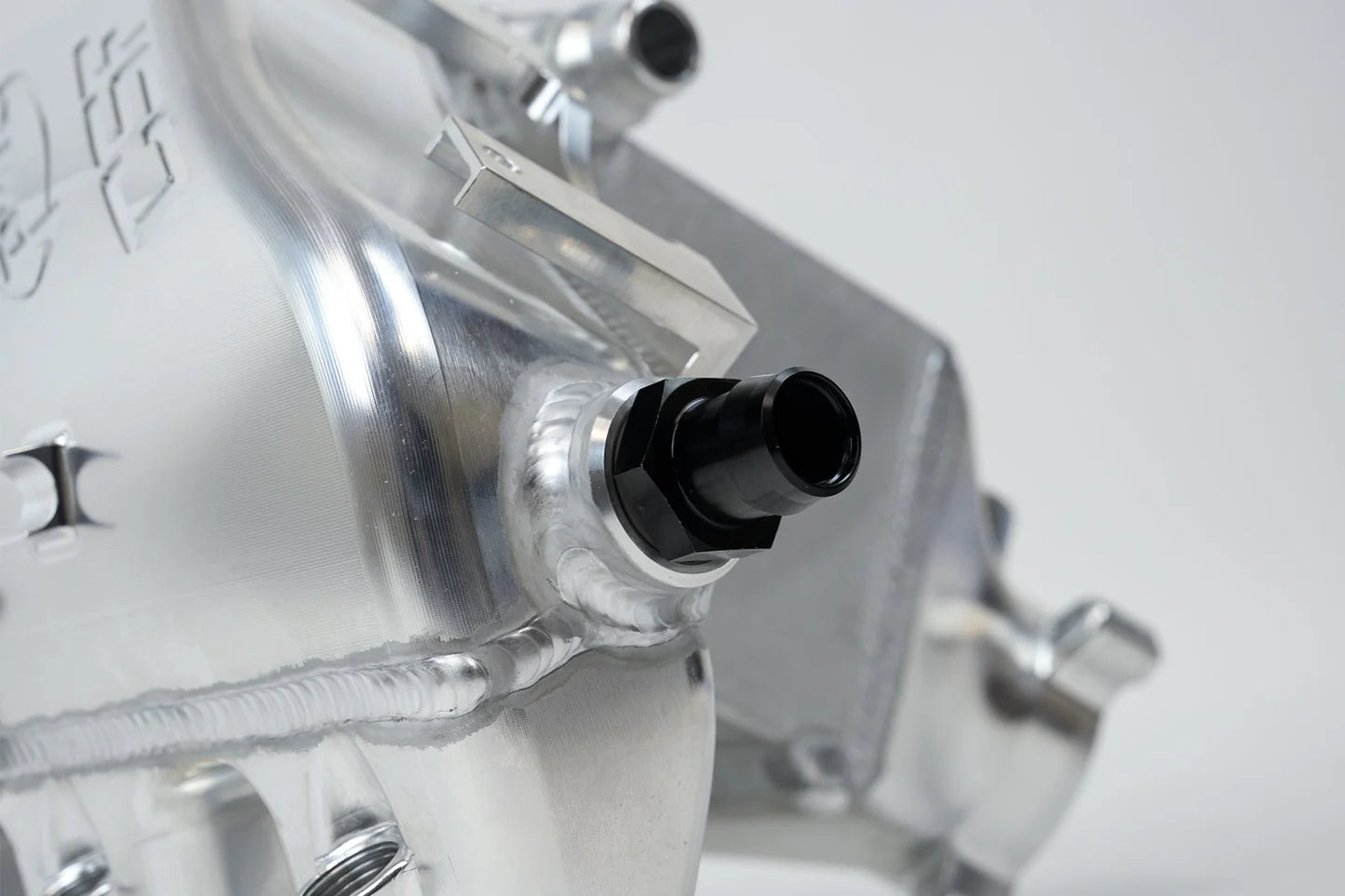

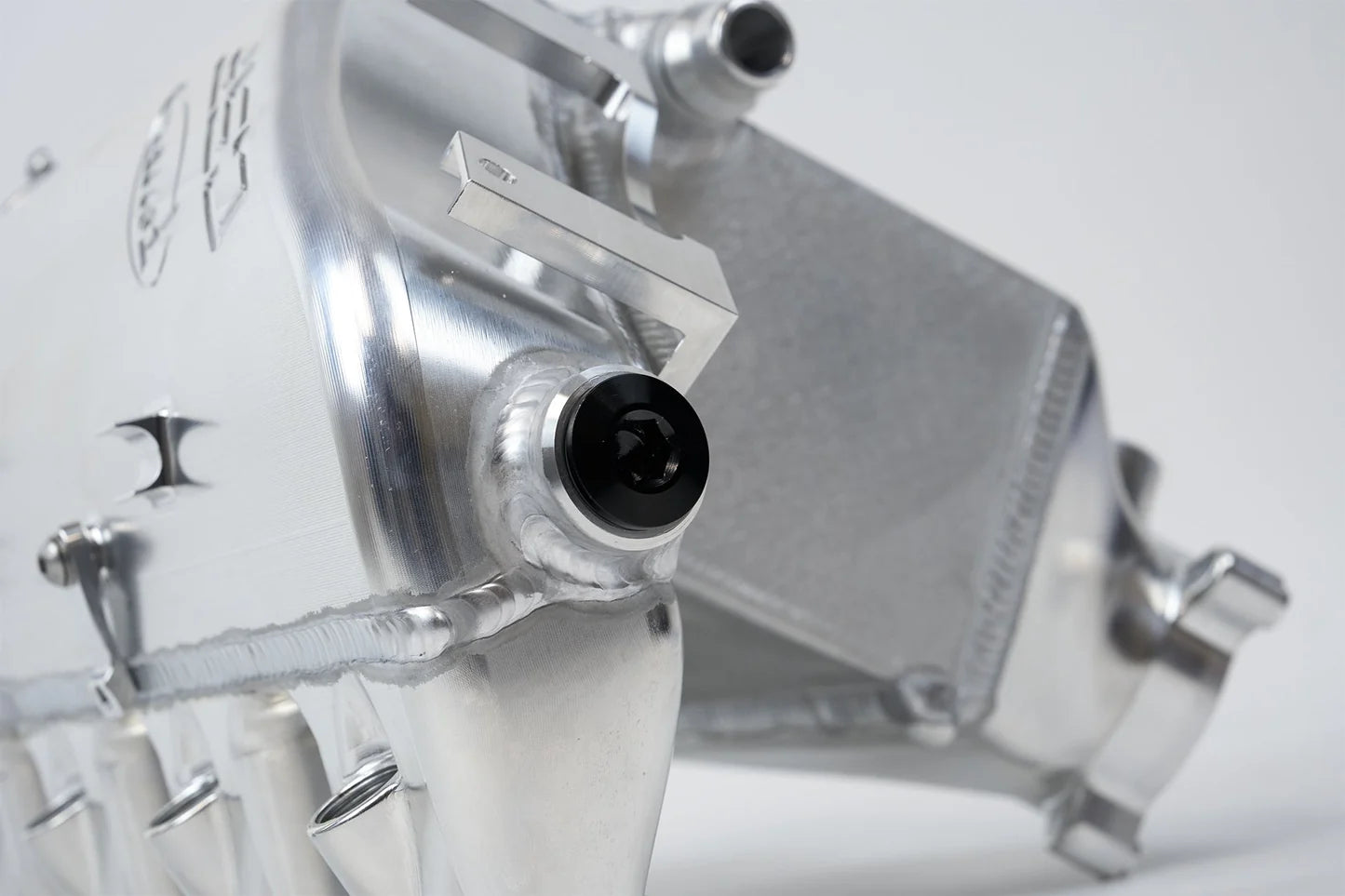

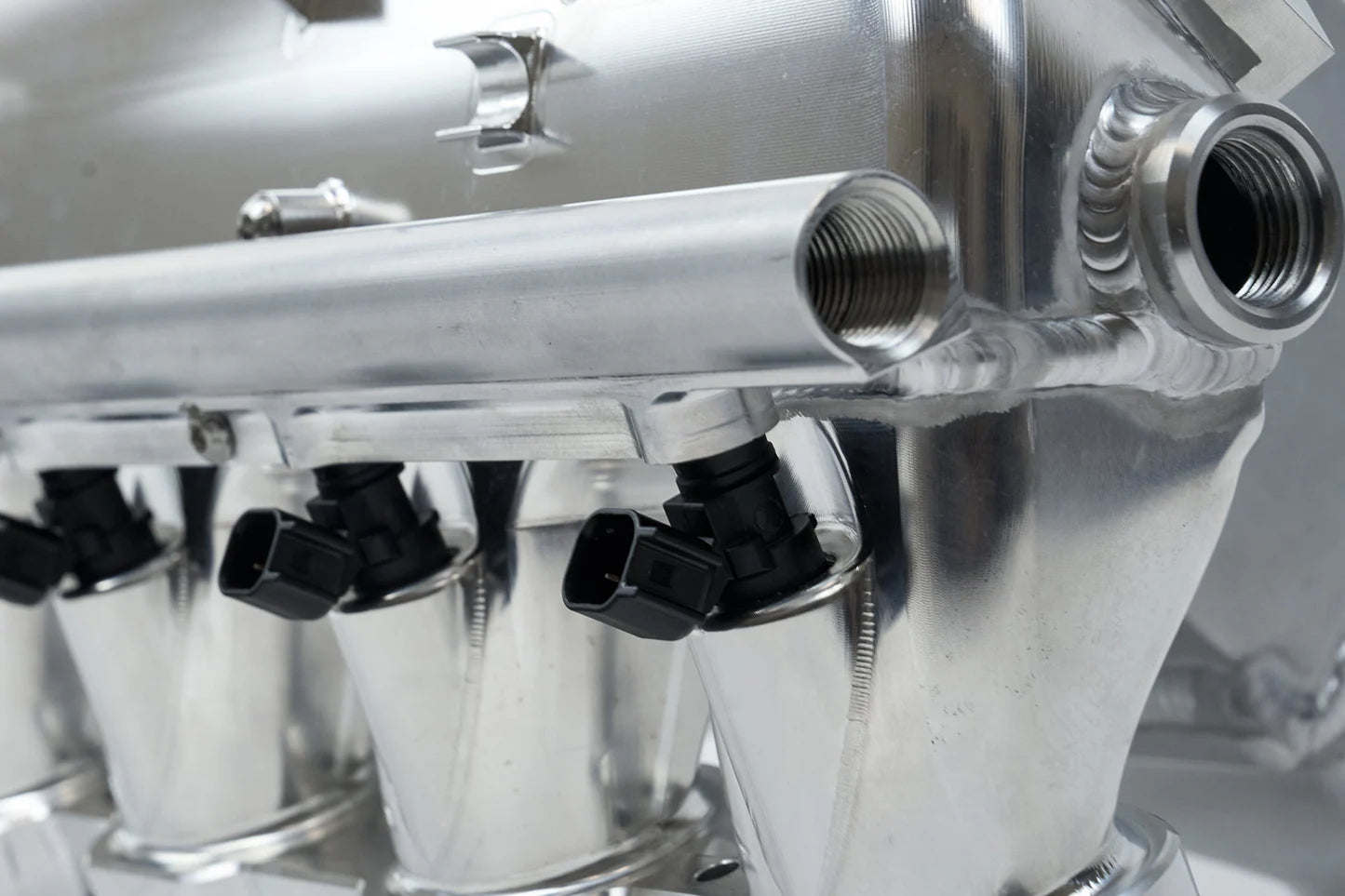

Integrated features include a machined AN8 port injection fuel rail, individual 1 8 inch NPT nitrous or methanol ports on each runner, dual 10 ORB fittings, three port sensor pad, integrated bleeder screw, machined coolant quick connects, oil filter access recess, and full OEM style mounting provisions.

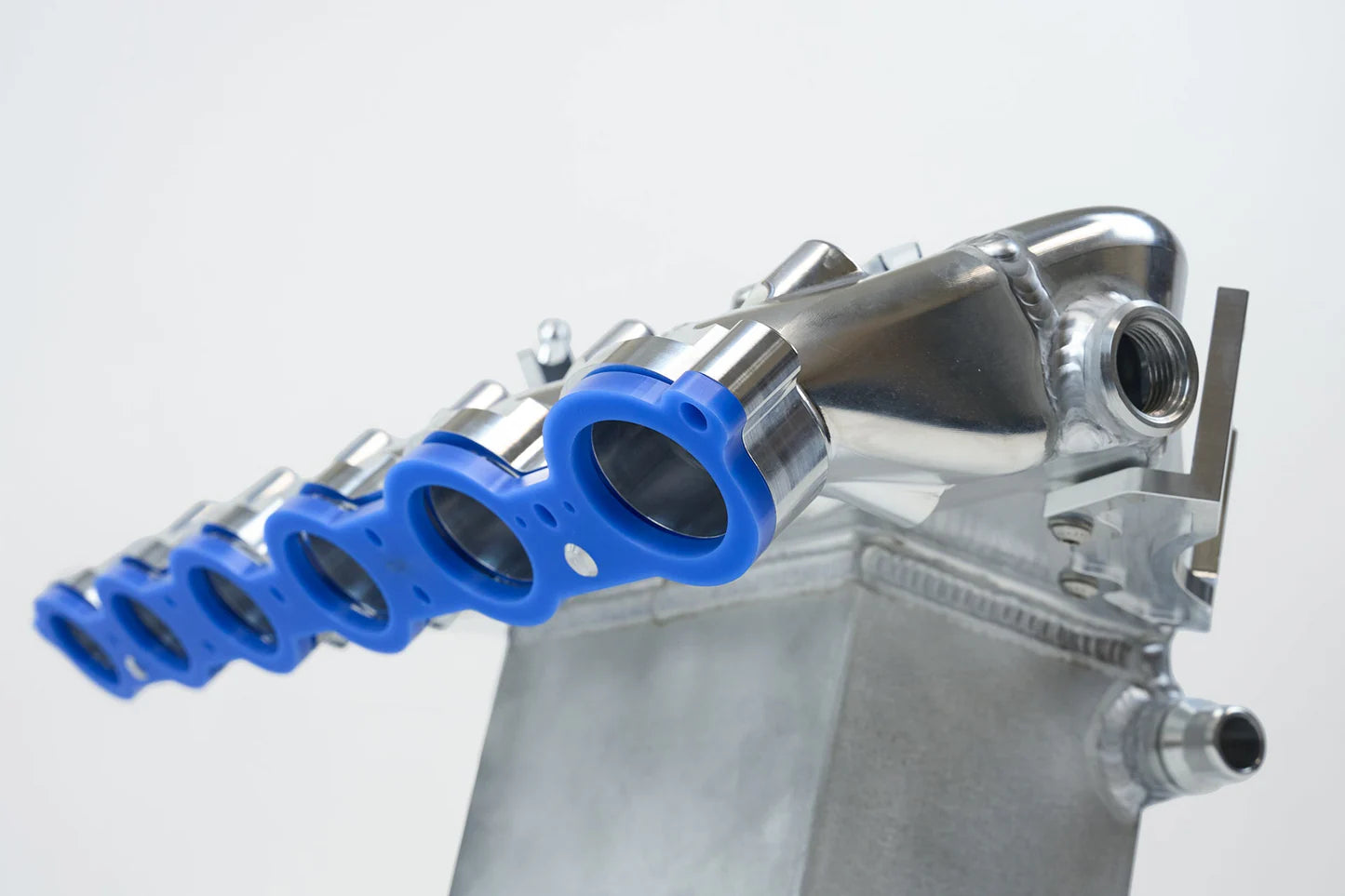

The included KIYLEX Thermal Rejection Competition Spacer withstands temperatures up to 1100 degrees Fahrenheit. Unlike traditional phenolic spacers, KIYLEX dissipates heat rather than trapping it, reducing manifold heat soak and stabilizing intake air temperatures.

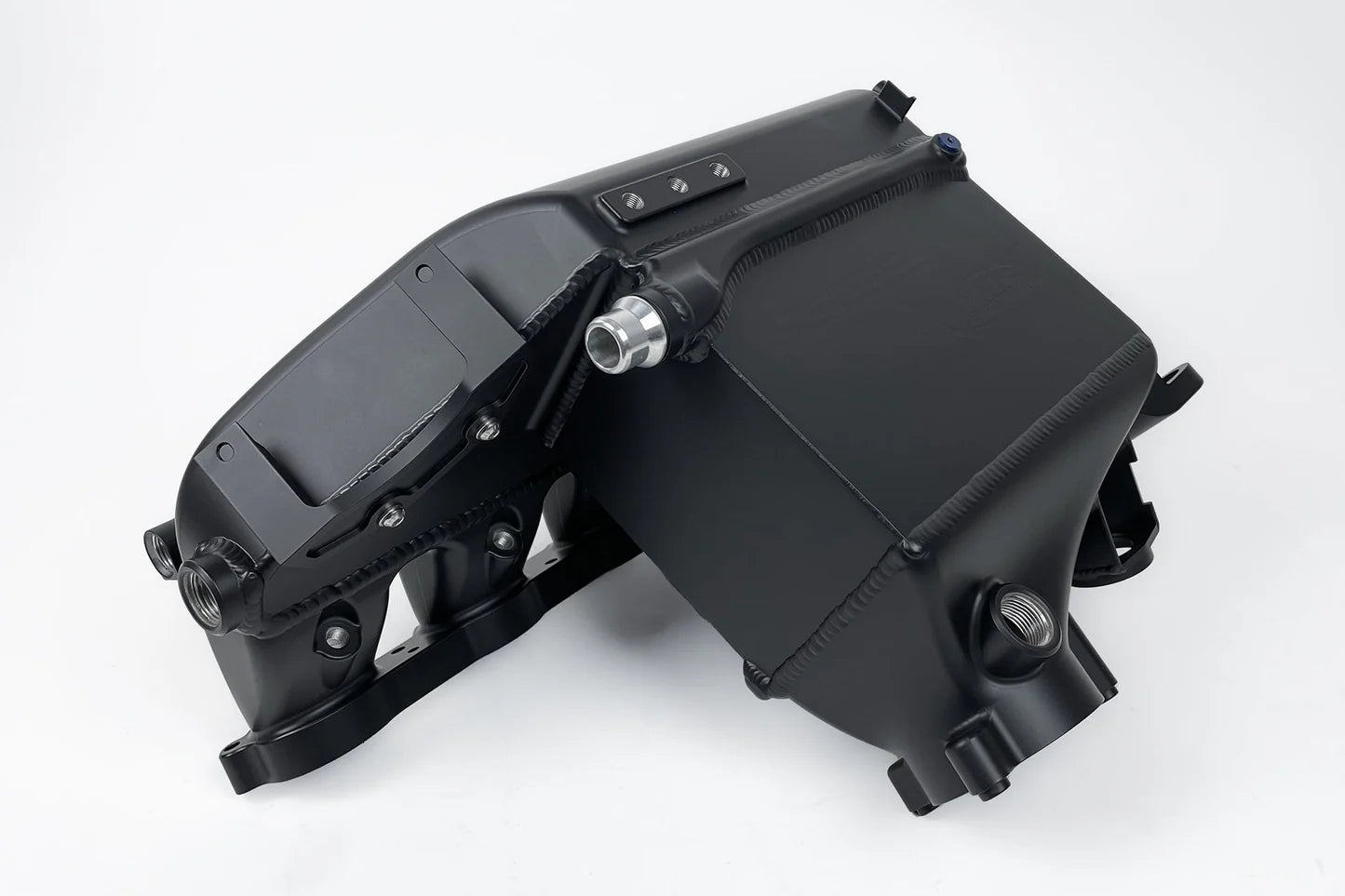

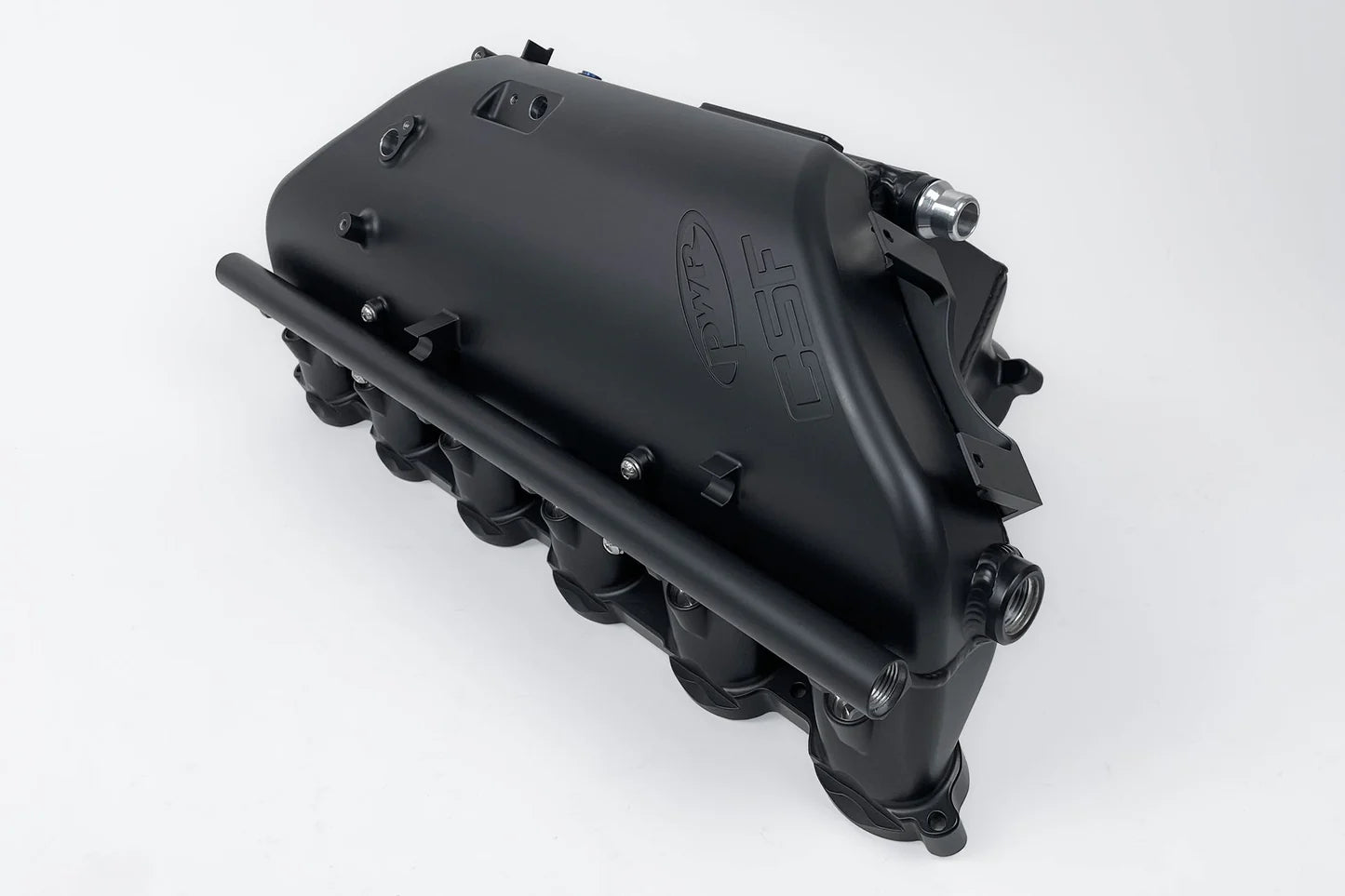

Finished in Thermal Black Heat Dispersion coating, this version enhances surface heat transfer while delivering a clean, aggressive engine bay look.

Configuration Options

Thermal Dispersion Black finish, optimized for maximum heat transfer and faster turnaround.

Integrated port injection system with included fuel rail and block off bungs for those not running supplemental fueling.

Integrated nitrous or methanol ports with steel bungs included.

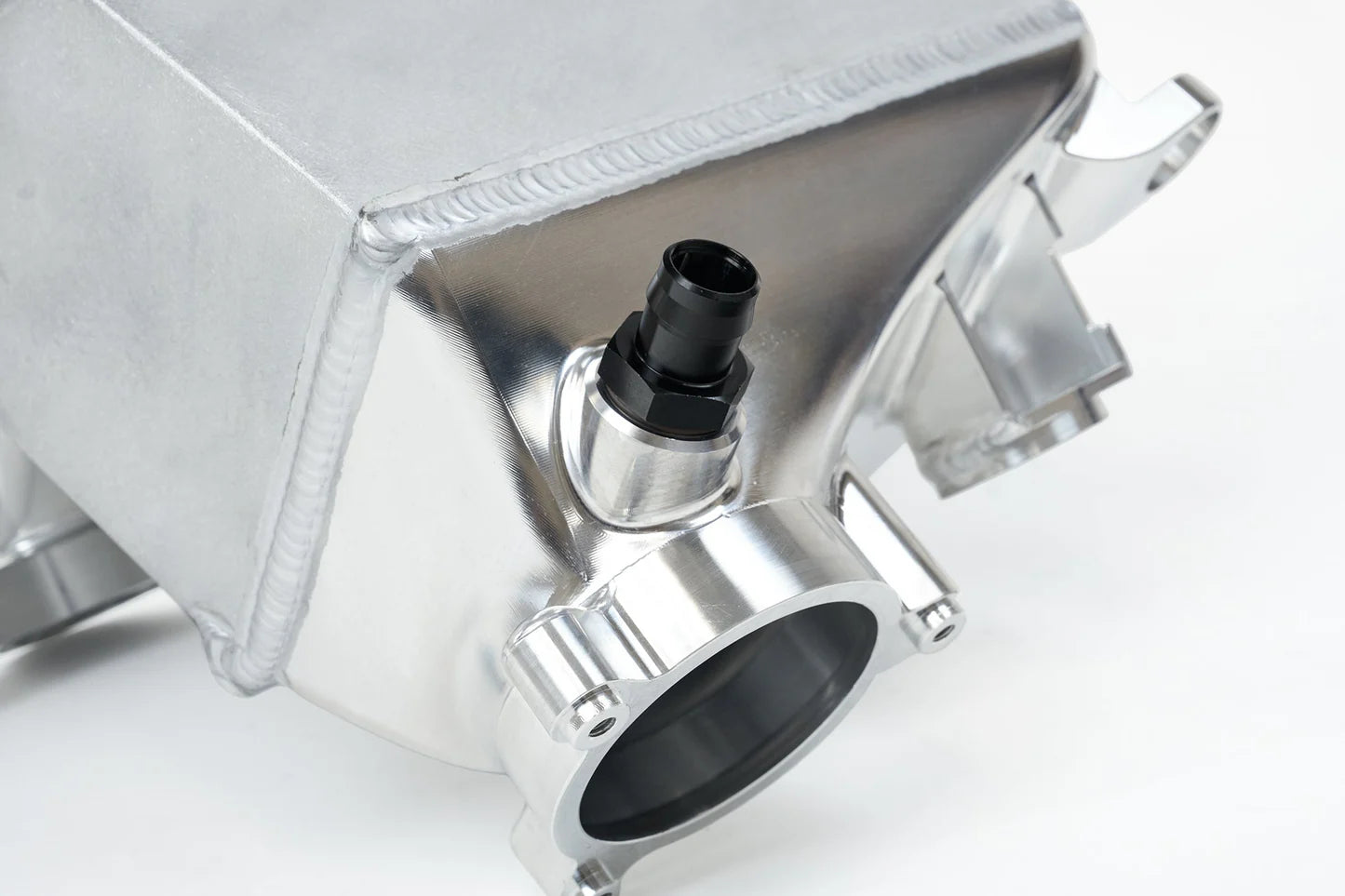

Front threaded port for F97 X3M and F98 X4M compatibility, also usable for optional blow off valve applications on G8X models.

Exhaust Tips & Customization

Not applicable. This product is focused on intake charge cooling and manifold performance.

Thermal Dispersion Black is engineered for optimal heat rejection and durability. Additional custom finishes are available under separate part numbers.

Production & Lead Time

Each manifold is built in limited production in the USA and assembled with strict quality control. Every unit is pressure tested under water at 80 PSI and inspected before packaging. Typical lead time is three to four weeks depending on availability. Quality and testing always come first.

Fitment

Year Range	Make	Chassis Code	Model	Trim	Engine / Trans / Etc	Notes
2023-2025	BMW	G87	M2	-	Turbocharged 3.0L L6	-
2021-2025	BMW	G8X	M3	-	Turbocharged 3.0L L6	-
2021-2025	BMW	G8X	M3	Competition	Turbocharged 3.0L L6	-
2022-2025	BMW	G8X	M3	Competition xDrive	Turbocharged 3.0L L6	-
2024-2025	BMW	G8X	M3	CS	Turbocharged 3.0L L6	-
2021-2025	BMW	G8X	M4	-	Turbocharged 3.0L L6	-
2021-2025	BMW	G8X	M4	Competition	Turbocharged 3.0L L6	-
2021-2025	BMW	G8X	M4	Competition xDrive	Turbocharged 3.0L L6	-
2023-2025	BMW	G8X	M4	CSL	Turbocharged 3.0L L6	-
2023-2025	BMW	G8X	M4	CSL	Turbocharged 3L L6	-
2020-2024	BMW	F97	X3	M	Turbocharged 3.0L L6	-
2020-2024	BMW	F97	X3	M Competition	Turbocharged 3.0L L6	-
2020-2025	BMW	F98	X4	M	Turbocharged 3.0L L6	-
2020-2025	BMW	F98	X4	M Competition	Turbocharged 3.0L L6	-

Replaces OEM part numbers 17518092584 and 17518053321.

Benefits

• Lower intake air temperatures compared to OEM
• Improved efficiency with minimal pressure drop
• Core rated to 120 PSI for extreme boost builds
• Fully TIG welded CNC billet aluminum construction
• Integrated port injection and nitrous provisions
• KIYLEX thermal spacer reduces heat soak
• Larger plenum volume for improved airflow
• Drop in OEM style fitment with no modification required
• Thermal Black coating enhances heat transfer and durability
• 2 year limited warranty

NOTE: OFF ROAD USE ONLY
