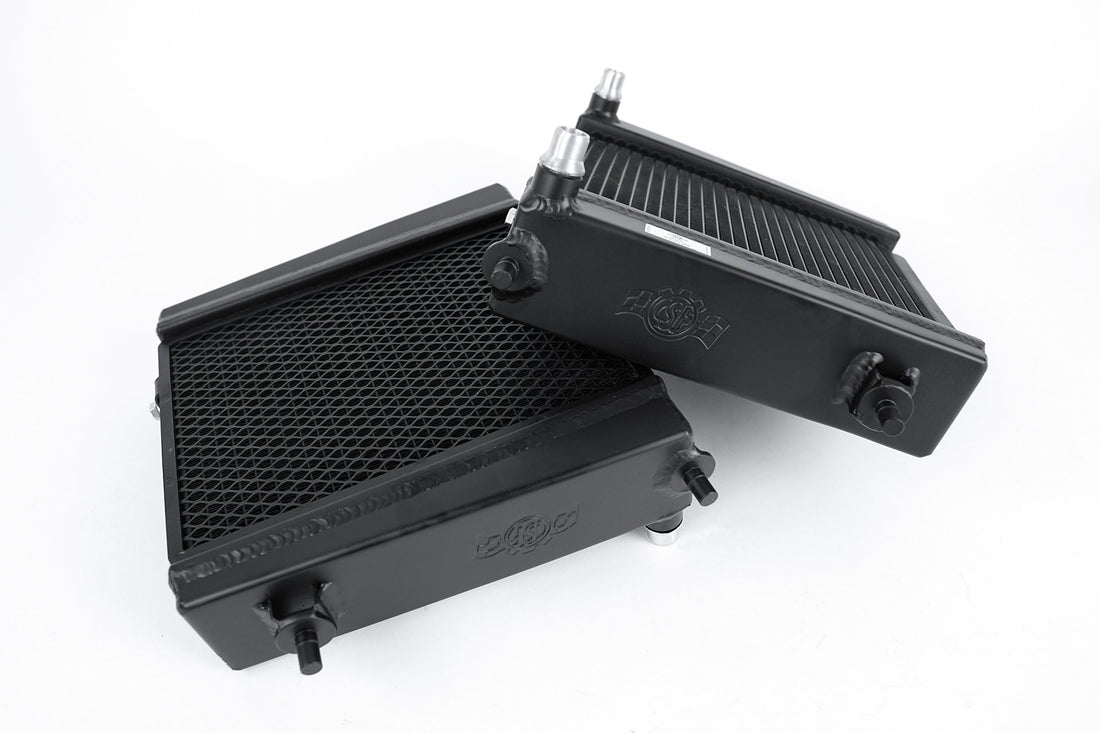

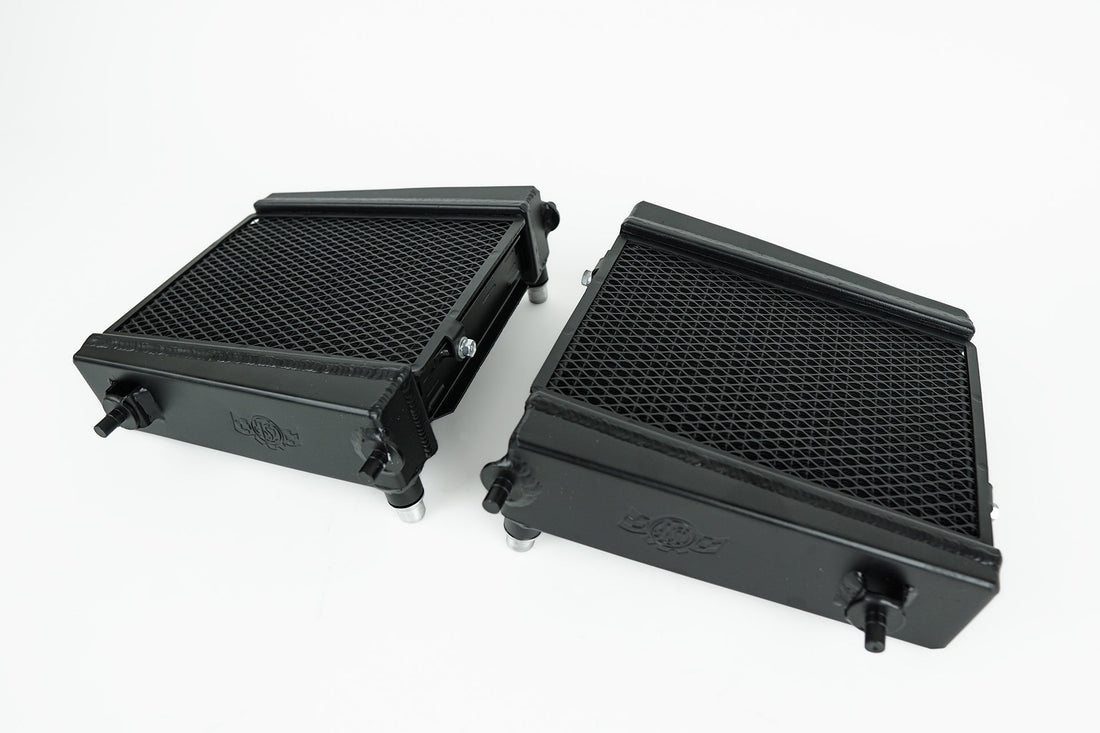

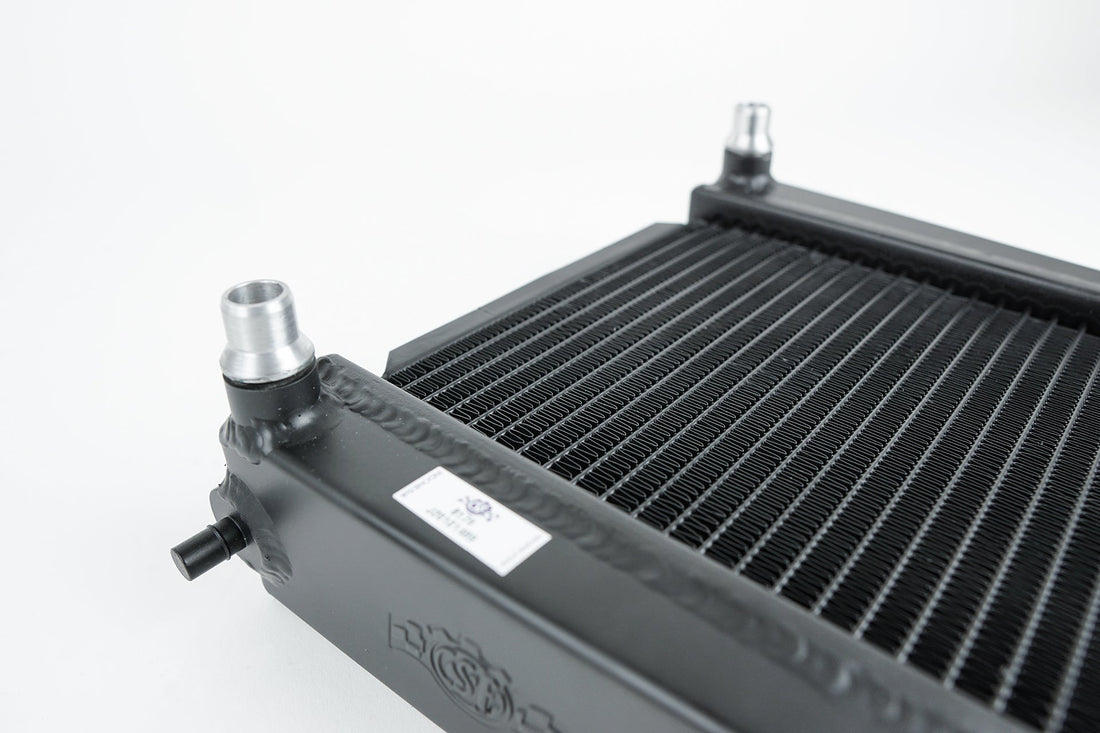

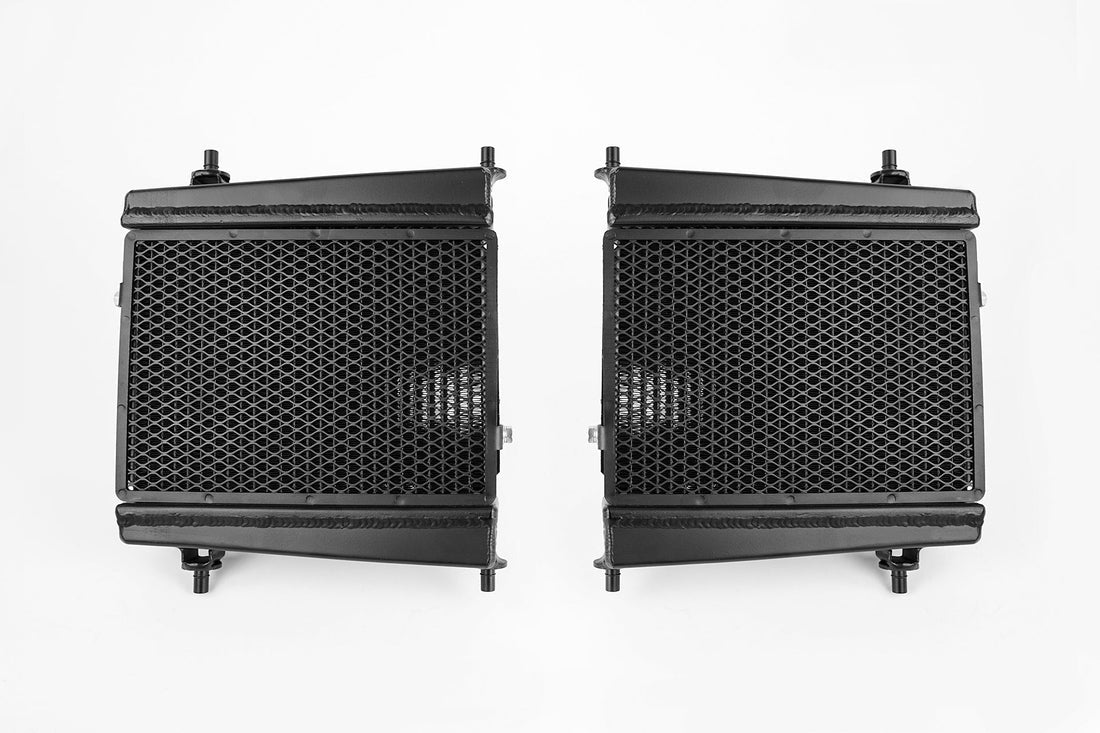

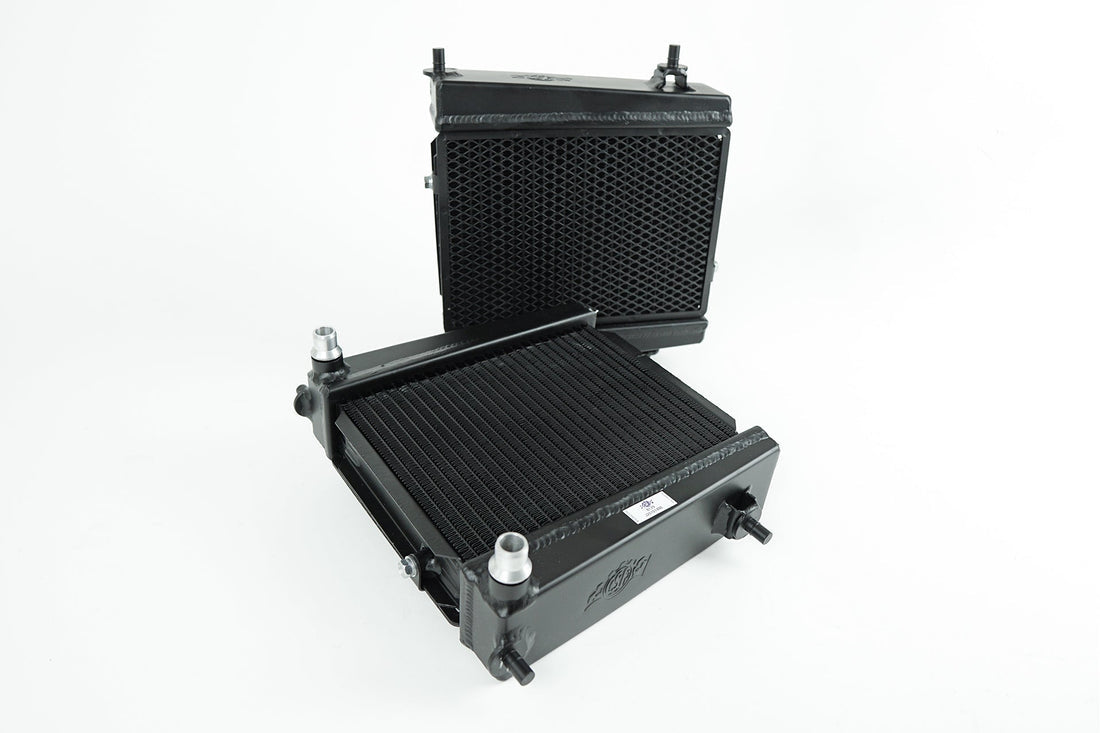

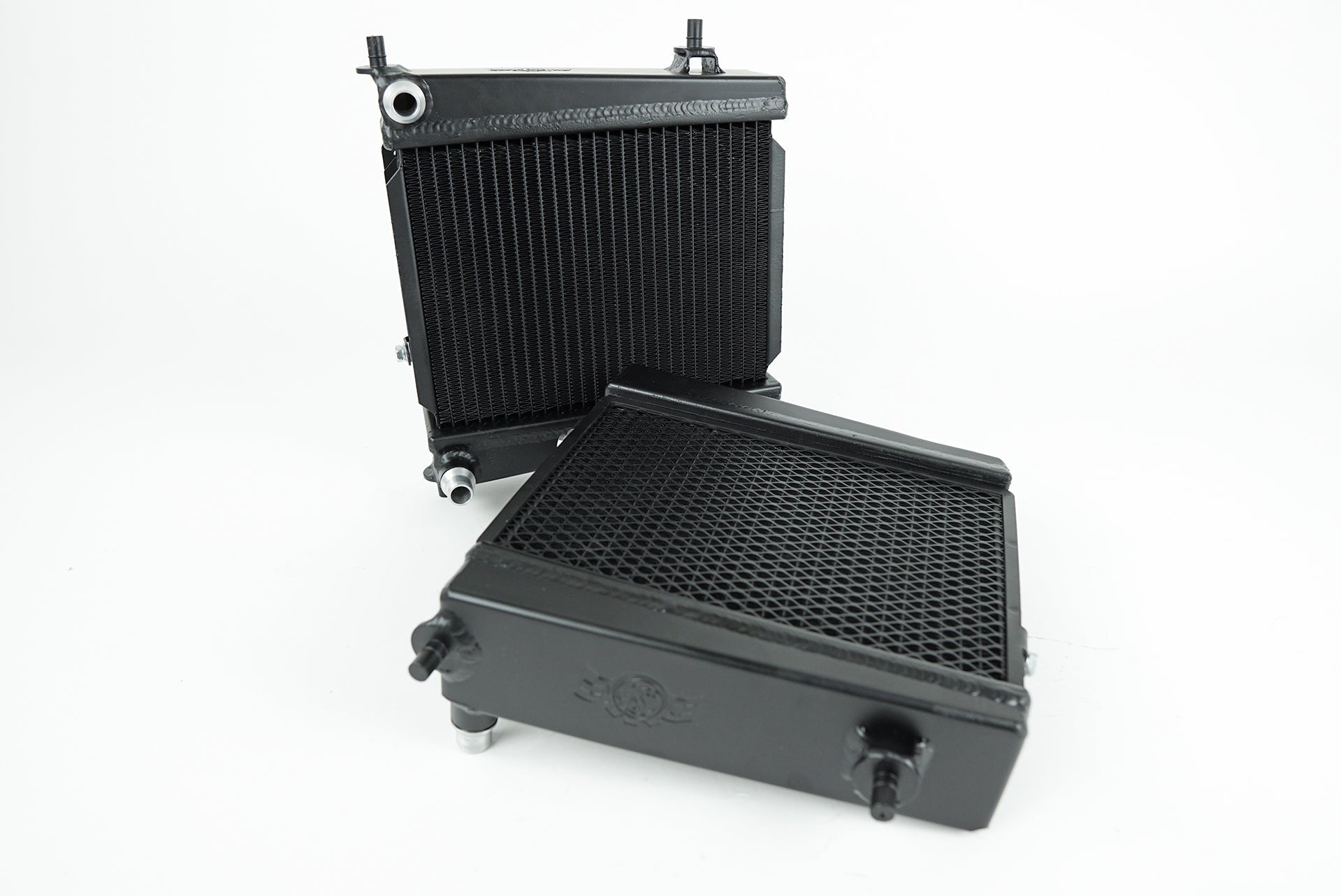

CSF A90 Supra / BMW G-Series High-Performance Auxiliary Radiator
Shop genuine CSF products through CenCal with confidence. Orders are fulfilled and shipped directly by CSF, ensuring fast processing and accurate delivery every time.
Don't be fooled by other high-performance aftermarket options that utilize the OEM plastic rock guard. The OEM rock guard's vertical channel design is specifically designed to only work with the tube spacing found on the OEM core. When the OEM rock guard is installed on an aftermarket radiator, it actually blocks a significant amount of surface area. Obviously this is detrimental to the intended performance. During CSF's own R&D phase, CSF analyzed both the OEM and other aftermarket offerings and decided to go the extra mile. CSF redesigned the included rock guard to allow maximum flow to the radiator core, while still offering ample protection from small rocks and road debris - all proven on CSF's in-house wind tunnel. CSF's new Auxiliary Radiator fits both the left and right side of the vehicle as a drop-in fit. Thus requiring no modifications to install. Each features CNC machined mounting brackets and OEM style "Quick Connect" inlet/outlet connections. This makes for a true plug-and-play installation that does not interfere with aftermarket performance aero modifications.
Click Here for the Full Press Release
FEATURES
- 2-Row, 42mm Ultra High Performance Core
- 6.5mm Tall Multi-Louvered Fin with CSF's Exclusive B-Tube Technology
- CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- Includes Detachable Aluminum Rock Guard (Industry Exclusive)
- Finished in a Thermal Black Protective Coating
- Fits Both Left & Right Side of Vehicle
- 2-Year Limited Warranty
- Drop-in Fit Requires No Modifications to Install
- Tested and Proven by CSF's Global Network of R&D Partners, Including Leading Time Attack Teams, Tuners, and Turbo Kit Manufacturers
APPLICATIONS
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 2023-2025 | BMW | G42 | M240i | - | Turbocharged 3L L6 | - |
| 2022-2025 | BMW | G42 | M240i xDrive | - | Turbocharged 3L L6 | - |
| 2020-2025 | BMW | G2X | M340i | - | Turbocharged 3L L6 | - |
| 2020-2025 | BMW | G2X | M340i xDrive | - | Turbocharged 3L L6 | - |
| 2021-2025 | BMW | G2X | M440i | - | Turbocharged 3L L6 | - |
| 2024-2025 | BMW | G2X | M440i Gran Coupe | - | Turbocharged 3L L6 | - |
| 2021-2025 | BMW | G2X | M440i xDrive | - | Turbocharged 3L L6 | - |
| 2024-2025 | BMW | G2X | M440i xDrive Gran Coupe | - | Turbocharged 3L L6 | - |
| 2019-2022 | BMW | G29 | Z4 | M40i | Turbocharged 3L L6 | - |
| 2019-2022 | BMW | G29 | Z4 | sDrive30i | Turbocharged 2L L4 | - |
| 2024 | Toyota | A90/A91 | GR Supra | 45th Anniversary Edition | Turbocharged 3L L6 | - |
| 2023 | Toyota | A90/A91 | GR Supra | A91-MT Edition | Turbocharged 3L L6 | - |
| 2020-2025 | Toyota | A90/A91 | GR Supra | - | Turbocharged 3L L6 | - |
| 2023-2025 | Toyota | A90/A91 | GR Supra | Premium | Turbocharged 3L L6 | - |
| 2024 | Toyota | A90/A91 | GR Supra | Premium 45th Anniversary Edition | Turbocharged 3L L6 | - |
OEM Part Numbers
- BMW: 17 11 8 672 237
- BMW: 17-11-8-672-237
- BMW: 17118672237
- Toyota: 16400 WAA04
- Toyota: 16400-WAA04
- Toyota: 16400WAA04
Warranty
Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit CFS Page.
SKU# 8179 Warranty Term: 2 years
