CSF BMW G8X M3/M4 ZF8 High-Performance Automatic Transmission Cooler

Shop genuine CSF products through CenCal with confidence. Orders are fulfilled and shipped directly by CSF, ensuring fast processing and accurate delivery every time.

The new CSF transmission oil cooler for the ZF8 automatic in the G8X M2/M3/M4 is engineered for high-performance and track-use applications. Featuring a unique dual pass design, the CSF Transmission Oil Cooler nearly triples the volume of the OEM unit and increases fluid capacity by ~94%.

The core features advanced micro-tube condenser technology derived from CSF's A/C cooling systems. Its 9-Channel Microtube design optimizes oil flow and offers maximum surface area contact. Installation is plug and play with the drop-in fit design. The CSF cooler retains OEM quick-connects and includes a replaceable rock guard for additional protection from road or track debris. This packaging helps preserve shifting performance, maintain optimal transmission oil temperatures, and extend transmission life in modified or race-prepped G8X M Cars.

Click Here for the Full Press Release & Additional Product Details

FEATURES

• Dual-Core Design
• 194% Increase in Core & Tank Volume
• 94% Increase in Fluid Capacity Compared to OEM (CSF 1700ml vs. OEM 875ml)
• Two 22mm Stacked Cores = 44mm Core Thickness vs. OEM 28mm Core Thickness
• Rear Cooler: 16 Rows vs. OEM 14 Rows (191mm Overall Height vs. OEM 155mm)
• Front Cooler: Additional 16 Rows
• Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 9-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
• Utilizes OEM Top/Bottom Rubber Seals for Optimal Airflow

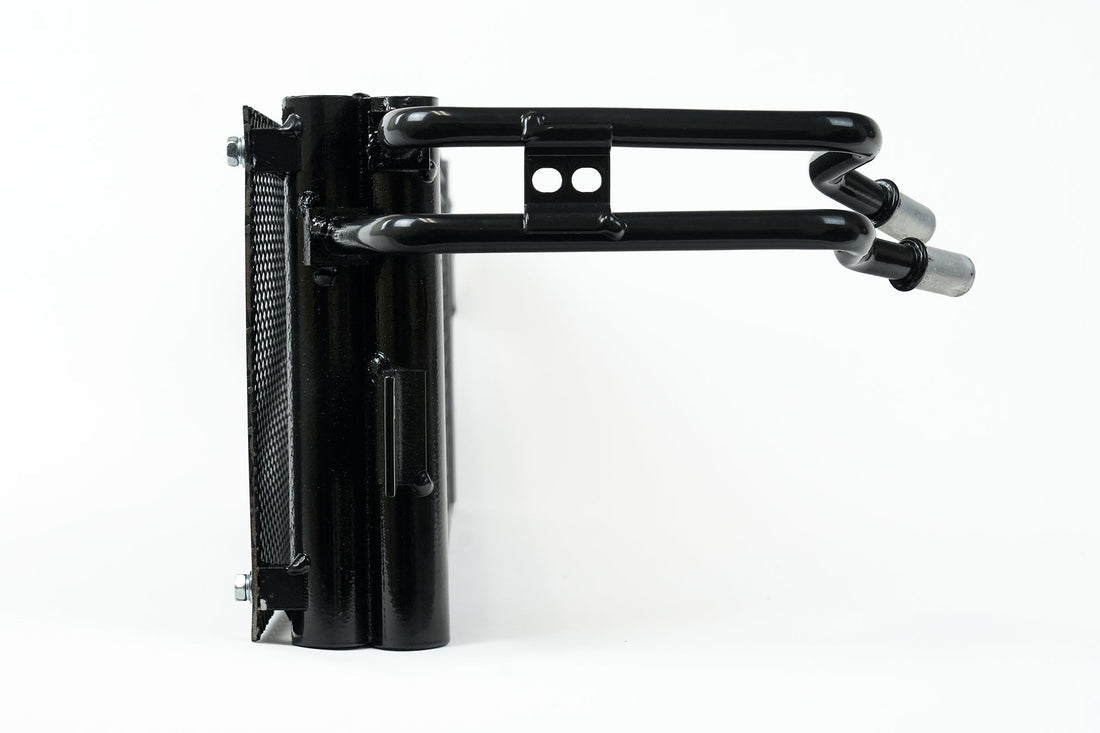

• OEM Style "Quick Connect" Inlet/Outlet Connections
• Drop-in Fit Requires No Modifications to Install

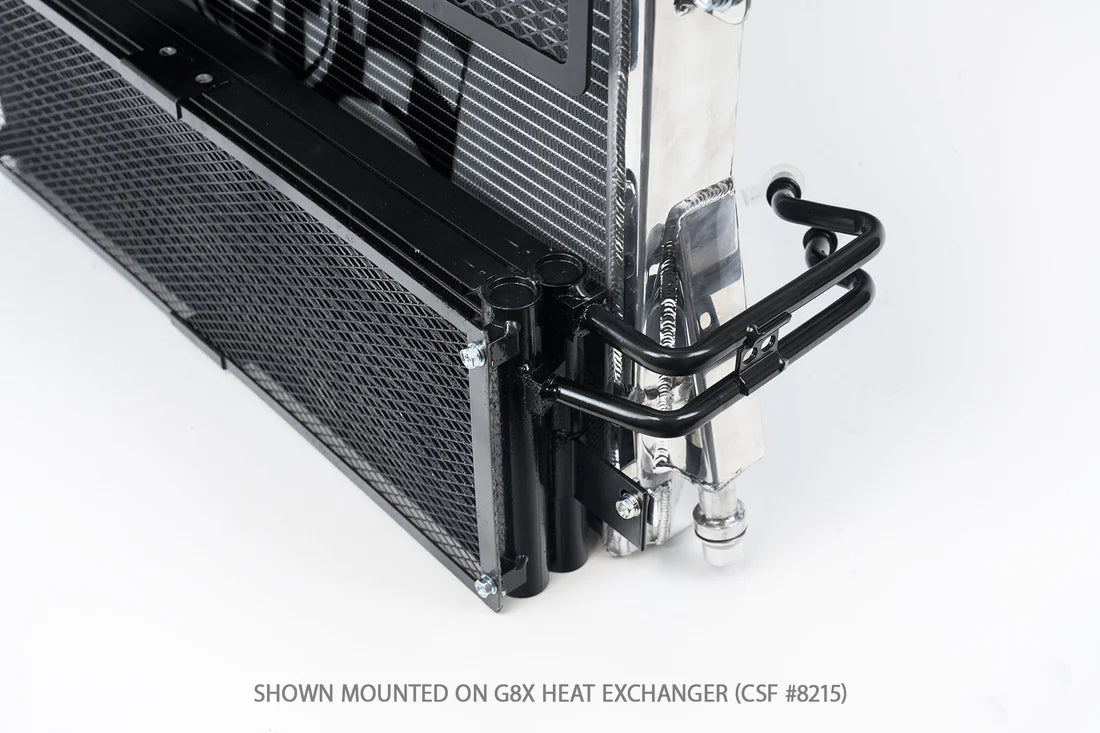

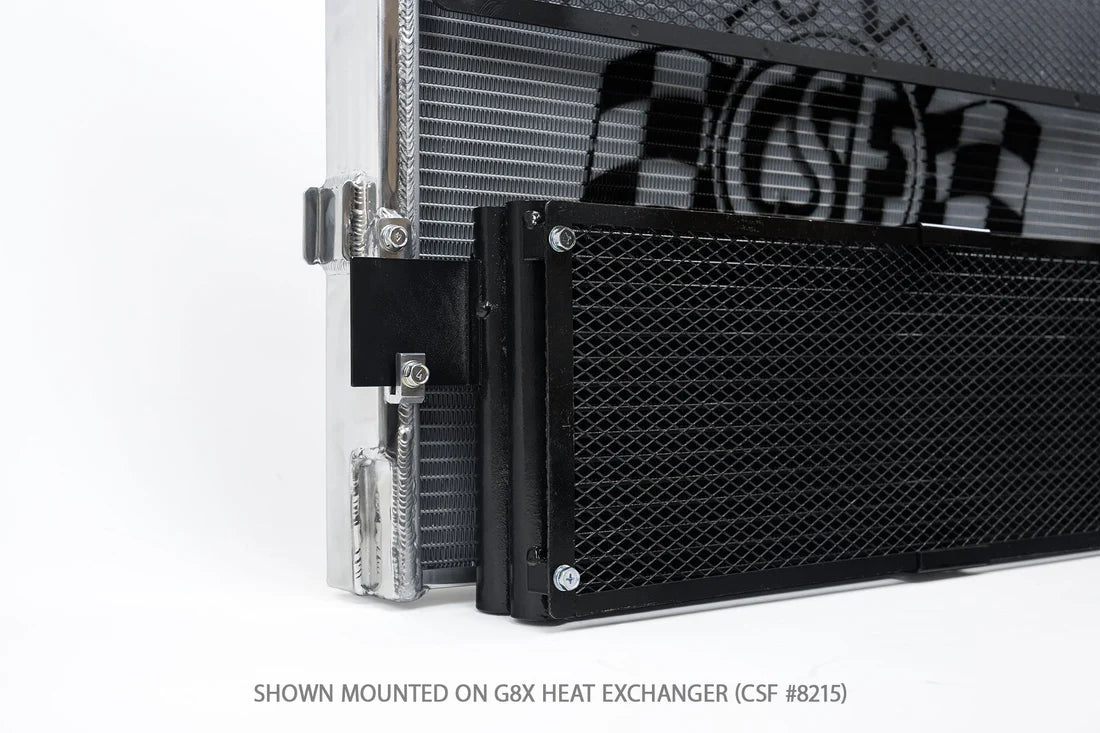

• Can be Installed With CSF's High-Performance Heat Exchanger (CSF #8215) or with the OEM Cooling System
• 2-Year Limited Warranty
• Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance and/or Transmission Tuning

APPLICATIONS

OEM Part Numbers

• BMW: 17 11 8 095 284
• BMW: 17-11-8-095-284
• BMW: 17118095284

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit CFS Page.

SKU# 8221 Warranty Term: 2 years
